A router dovetail jig turns the hardest joint in furniture making into a repeatable, two-minute operation. I have run seven of the leading dovetail jigs through drawers, small boxes and carcass joints in my shop, and the difference between a good one and a frustrating one comes down to three things: how the jig holds the workpiece, how wide a range of material it accepts, and how much scrap you throw away while you get it dialled in.

That last point matters more than most buyers expect. Community woodworking threads describe bit height adjustment as the single biggest frustration in the category, with some owners reporting eight or more test cuts before their first joint fits. A jig that removes test cuts entirely is worth real money even to a beginner.

Below is my shortlist of the best dovetail jigs available now, with the honest tradeoffs for each. If you want the fast answer, the Keller 135-1500 Journeyman sits at the top because it cuts through dovetails on a large milled template without a single trial cut. Read on for the reasoning, and for the buying criteria that actually separate these machines from one another.

Our Top 3 Dovetail Jigs for 2026

Comparing the Best Dovetail Jigs in 2026

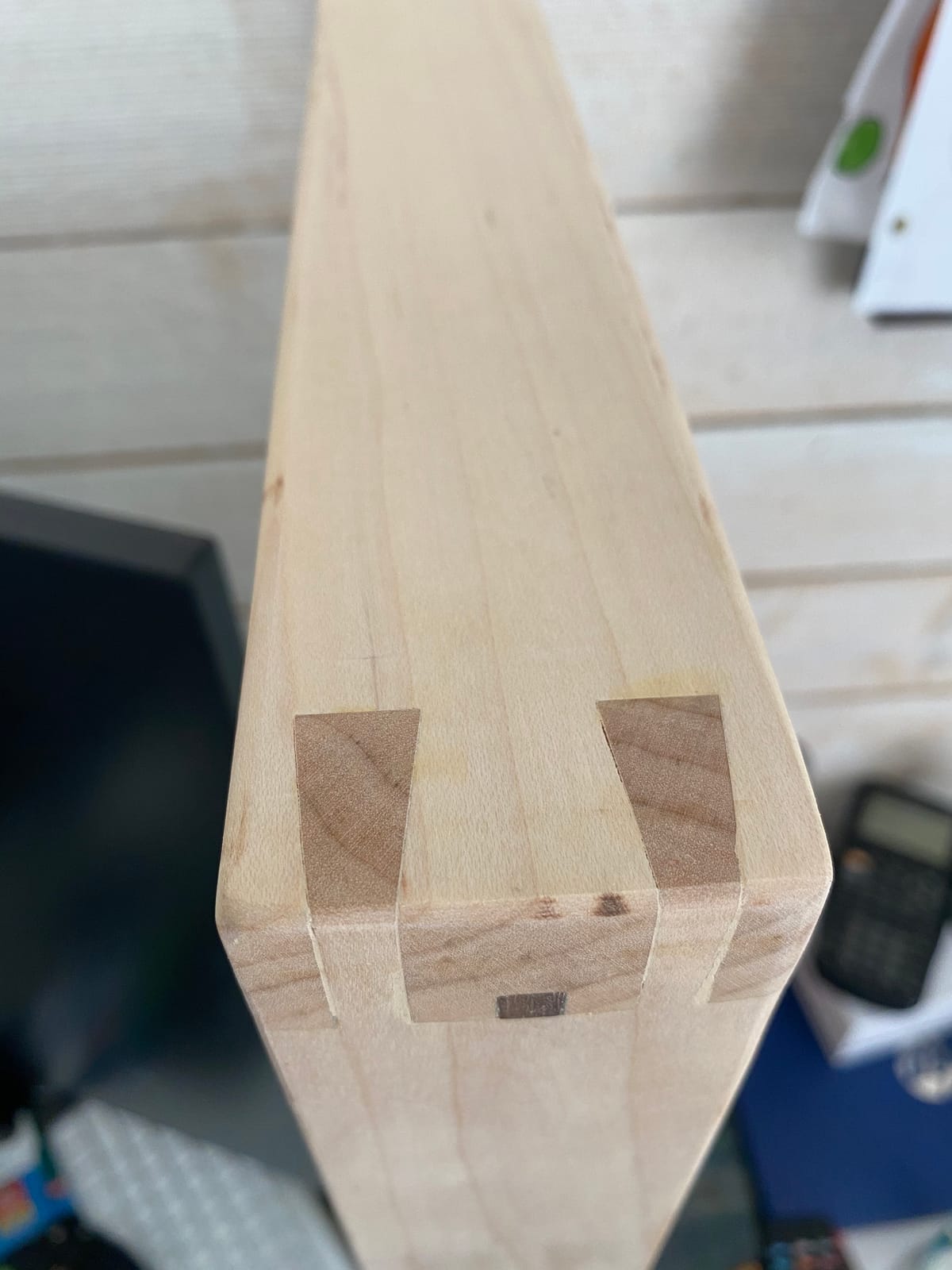

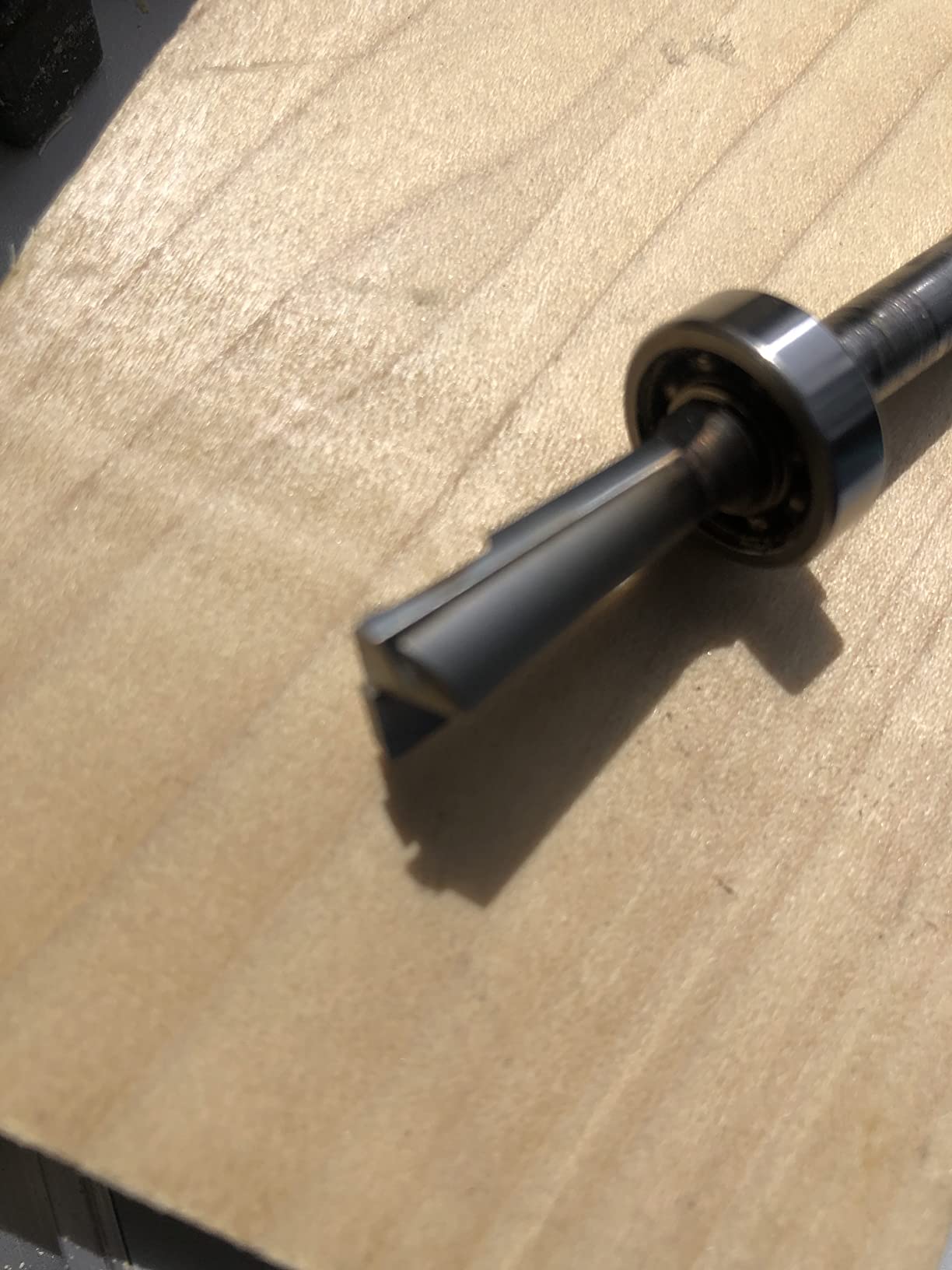

1. Keller 135-1500 Journeyman – Through Dovetails With No Test Cuts

The Keller 135-1500 is the jig I keep reaching for when I am building boxes rather than cabinetry, and that is exactly the gap it fills. It is a single milled template, not a hybrid finger system, so there is no clamping strategy to learn and no spacing to dial in. The workpiece goes against the template, the router follows the slots, and the joint comes out the same size every time.

What makes this one stand out is the claim that no test cuts are required. In practice that means the template geometry is set at a fixed, known depth, so you set the router bit once and start cutting real stock. For a first-time jig owner, that removes the trial-and-error loop that trips most beginners up.

The template itself is the reason for the strong ratings. At 15 inches, it is one of the larger milled surfaces in this group, which gives you room for long drawer sides and wide panels without repositioning. The milling is what keeps the two ends of a joint matching evenly, and owners with long ownership histories report the template still holds its geometry.

Material range and board width are where it opens up

The Keller accepts material from 1/8 inch all the way to 3/4 inch thick, and the published specification is unlimited board width and length. For furniture work that means a single drawer side, a wide chest side, or a full cabinet panel all fit the same setup.

Because the template is solid wood rather than aluminum, the whole unit comes in at 1.7 pounds and measures roughly 27 inches long. It is heavier than a metal template of the same size, which is a small penalty for the stability on a bench.

Through dovetails only, and that is the trade

This is not a hybrid jig. It cuts through dovetails, the classic exposed-tail joint, and it does not produce cabinet-style half-blind joints without additional templates. If your project list is drawers and half-blind fronts, you need a different machine or a second template.

Who should buy the Keller

Buy it if you build boxes, blanket chests, small cabinets or jewellery cases and you want repeatable through dovetails with no setup waste. It is the lowest-friction path from first jig to clean joint that I found in this group.

Skip it if your work is concentrated in drawer construction where the tails must be hidden. The rating distribution is worth noting too: 76 percent five-star and 17 percent four-star against only 1 percent one-star, which is one of the strongest consistency profiles here.

2. CMT300 Universal Jig – Steel Rigidity for Thick Material

The CMT300 solves a problem most jigs create: thick material. Its published range runs from 7/16 inch to a full 1 inch thick, which makes it the only jig here rated for a full inch of material thickness.

Everything structural is steel: the body, the templates, the stops and the clamping bars. Steel carries heat better than a thin aluminum plate, which matters on a long run of dense hardwood where a lesser template can drift.

Factory-set stops remove the measurement step

The CMT300 uses fixed stops rather than adjustable fingers. You clamp the workpiece against the stop and rout, then set the bit depth once and repeat the joint. For batch production of identical drawer parts, that repeatability is exactly what you want.

Because every stop is fixed at the factory, there is no per-joint measuring and no finger spacing to dial in, which is what makes the clamp-and-repeat workflow so fast on batch work. The rating spread backs this up, with 77 percent five-star and 13 percent four-star ratings.

The catch is weight and included templates

At roughly 13 pounds, this is one of the heavier jigs in the group, and it needs a solidly mounted base rather than a lightweight bench top. The templates and stops are large flat steel surfaces, so I would mount it to a proper bench or dedicated board before the first cut.

Only the 1/2 inch half-blind template ships in the box. Other joint sizes and styles need the optional CMT templates, which turns this from a complete kit into a platform you build out over time. Buyers also report that plastic spare parts are difficult to source outside the United States, so check the accessory situation before you commit to a particular template size.

Where the CMT300 fits best

This is my pick for cabinet and carcass work where material is on the heavier side and every part needs to come out identical. The clamp-and-repeat workflow suits production work better than it suits one-off odd-sized pieces.

For the money-conscious beginner working in thinner hardwood at home, the extra weight and the add-on templates are more than you need. Look at the General Tools 861 or the Peachtree kit instead.

3. Leigh RTJ400 – One Template, Every Joint Style, Router Table Native

The RTJ400 is built around one idea that its competitors mostly skip: a single template that covers a very wide range of joinery. Through dovetails, half-blind dovetails, half-pitch spacing, angled dovetails, end-to-end splices and box joints all come from the same machined plate. For a shop that does varied work, that is a lot of capability in one tool.

It is designed for a router table rather than a handheld router. The jig glides across the table surface on its own base, so both hands stay on the workpiece and well away from the spinning bit. That is a genuine safety and control improvement over bench-top jigs where the router is hand-guided.

The elliptical guide bushing is the heart of it

The kit includes an elliptical guide bushing, and it is the reason owners report a consistent fit with very little trial and error. The bushing geometry compensates for the difference between the bit diameter and the template slot, which is the usual source of loose or gapped tails on cheaper jigs.

Construction is aircraft-grade aluminum with cam-action speed clamps and accurate depth gauges. At 10.41 pounds and about 29 inches long, this is a substantial piece of equipment that wants a proper router table with a clear surface.

Buy the table requirement seriously

The RTJ400 needs a Leigh e-Bush, which means your router table must have a counterbore insert ring adapter. Owners consistently flag this as the deciding factor, and a table without the adapter makes the jig unusable. Check your table before you buy, not after.

The written instructions also get criticised. Several owners describe the video walkthrough as effectively mandatory, which is common with high-end jigs where the setup sequence matters. Plan on spending an afternoon learning it rather than an evening.

Material behaviour is otherwise good, with one caveat: plywood with a thin face veneer over a voidy core can tear out at the tails. Use a clean, stable sheet and you will not have this problem.

Who the RTJ400 suits

Choose it if you already own a compatible router table and want one jig to cover most of your joinery. The rating profile is excellent, with 77 percent five-star, 14 percent four-star and no one-star ratings at all.

Pass on it if your router table lacks the counterbore insert ring adapter, or if you are just getting started and want the gentlest possible introduction to router joinery.

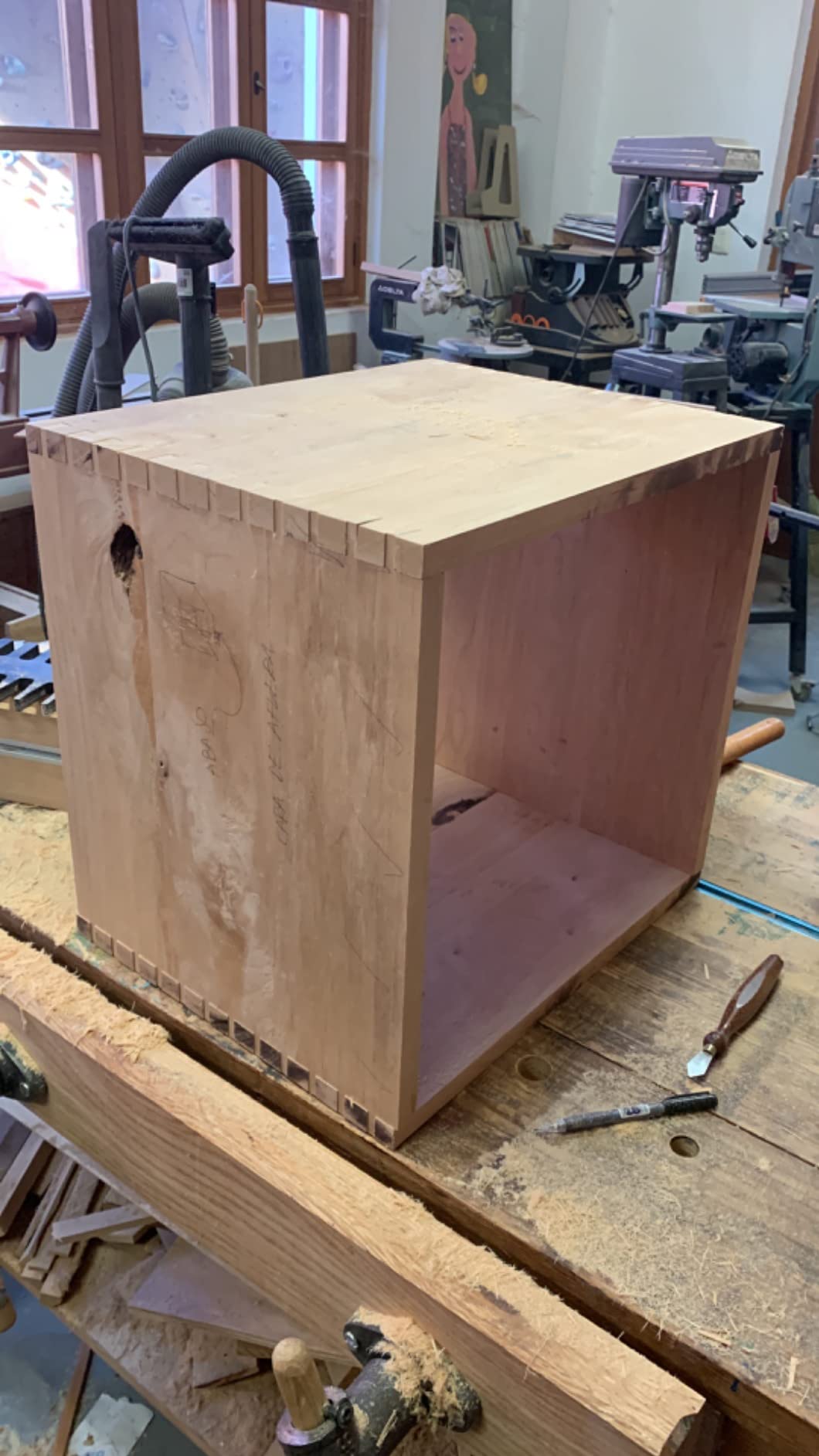

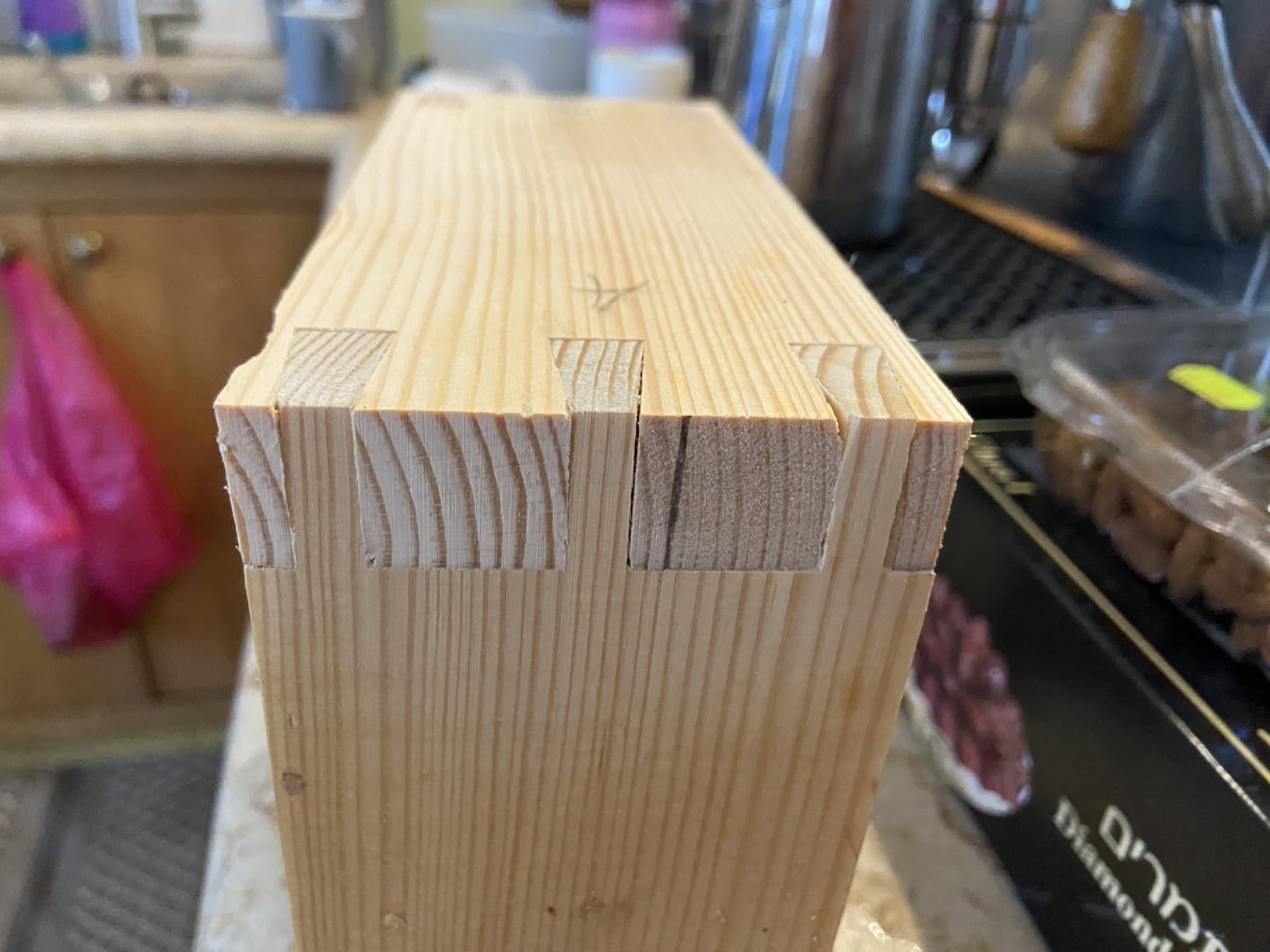

4. Peachtree Master Deluxe – The Complete Router Table Kit

The Peachtree Master Deluxe is the one kit here where you open the box and can start cutting. It includes two 17-inch aluminum tracks, two track clamps for mounting on a router table, a 7-degree dovetail bit and a flush trim bit. No separate bushing purchase, no missing hardware, no second order.

That completeness is what separates it from jigs that assume you already own the accessories. It is also the reason I would hand it to someone building their first router table setup.

Scribed lines are a small detail with a big payoff

The template is machined anodized aluminum with permanently scribed alignment lines. Once you find the correct position for a given workpiece, you can mark it and return to the same setting later instead of re-measuring from scratch. On a repeat project like a matched set of drawers, that saves real time.

The 7-degree bit produces a steep, refined pin profile that reads as period-appropriate on traditional furniture. The flush trim bit in the box cleans up the baseline on the tails.

The thickness range is the real limitation

This jig handles material from roughly 5/8 inch to 3/4 inch thick. That is narrower than every other jig on this list, and it is the first thing to check against your material. If your drawer sides are 1/2 inch stock, this jig will not help you.

The two 17-inch tracks also demand a router table with enough clear surface to mount them, so this is a router-table jig rather than a bench jig. The spear-point profile is a stylistic choice, but it suits decorative and furniture work better than it suits utility softwood projects.

Where it fits in my shop

I like the Peachtree for smaller decorative boxes where I want a refined pin look and a jig that is already configured for a router table. The rating base is smaller at 63 reviews, with 68 percent five-star, but 85 percent of ratings sit at 4 stars or better.

It is not the jig for thick stock, for half-blind drawer work on thin material, or for a beginner who has not yet chosen a router table. For those jobs the Keller or the CMT300 covers more ground.

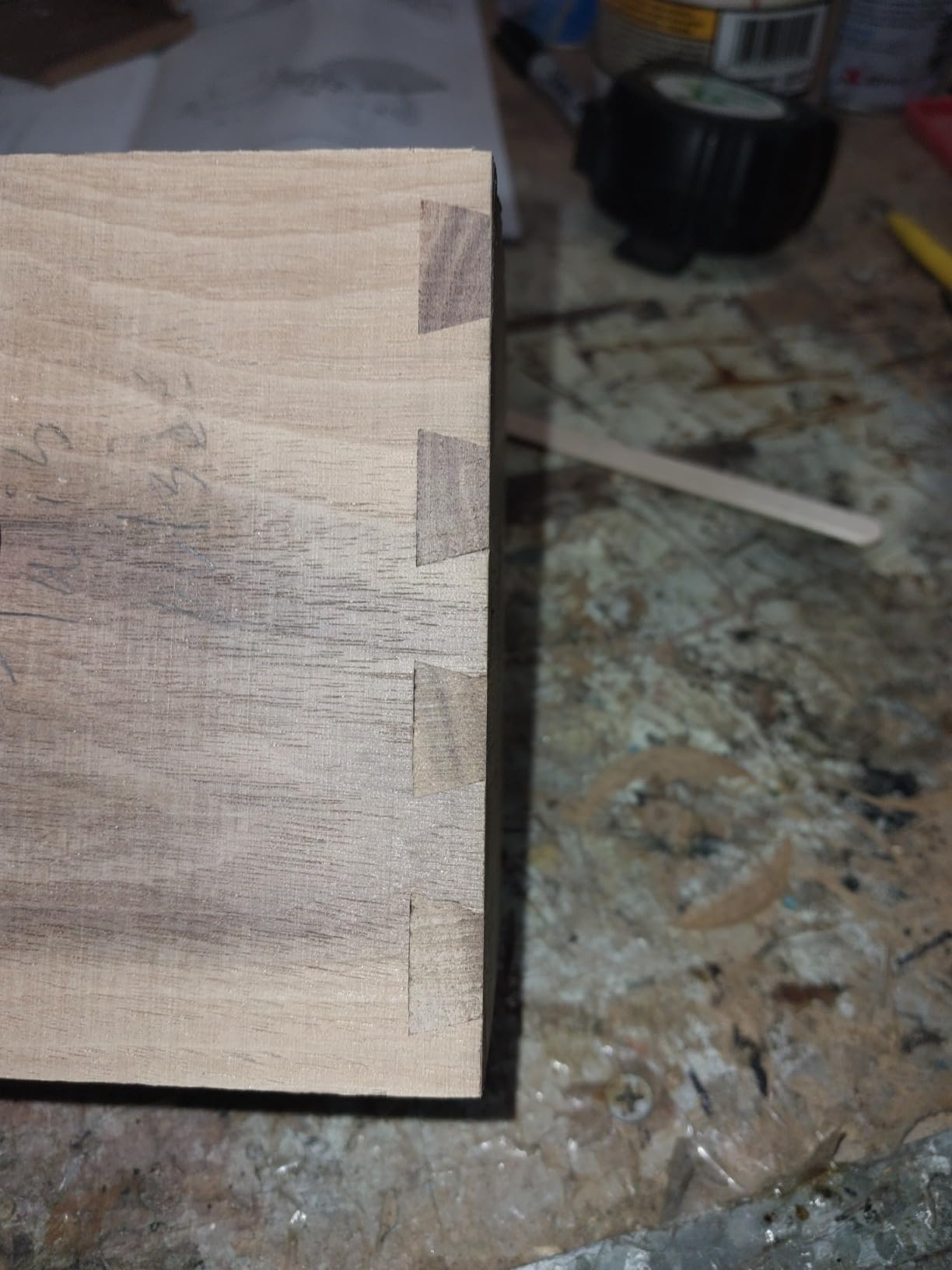

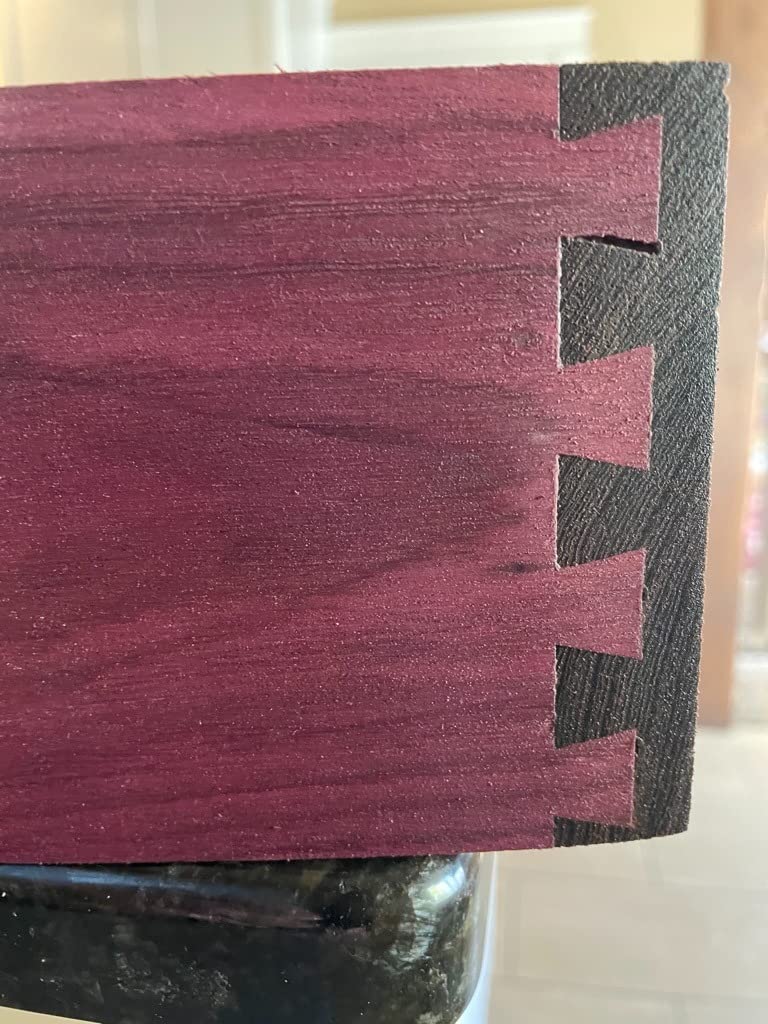

5. General Tools 861 – Three Joint Types in a Light Package

The General Tools 861 is the jig I recommend most often to a beginner, and the reason is simple: it does three jobs with one light piece of equipment. Through dovetails, half-blind dovetails and box joints all come from the same template, and it weighs under three pounds so you can move it around a small shop.

The template is a one-piece adjustable aluminum layout with integrated clamping, so the workpiece is held as part of the system rather than by separate clamps. It accepts boards of any width, which removes one of the fiddly decisions when you are new to this.

A micro-adjust that actually helps with fit

The micro-adjust interface is the feature that experienced users point to most. When a joint comes out slightly loose or slightly tight, you nudge the fit rather than re-cutting from scratch. On a template jig with fixed fingers this adjustment does not exist, and it is the difference between two test cuts and eight.

A 14-degree 1/2 inch dovetail bit is included in the box, which is unusual at this level and saves a separate purchase. The jig works with a handheld router or a router table.

Replace the supplied bit before your first hardwood cut

The included router bit is the most consistent complaint in the reviews. Owners report that it dulls quickly, can burn or break cutters, and in some cases the bearings separate. The short exposed shank is also reported to loosen in the collet on hard woods. Most serious users swap in a quality 14-degree bit from a specialist maker and keep the supplied one as a spare.

Two further issues are worth knowing. The box joint instructions are widely reported to be inaccurate, with a shim called for that is not included, so plan on working that method out from scratch. And the small work area means repeated re-alignment on wide workpieces or joints with a lot of pins.

The jig also needs firm clamping to the bench. Owners report it shifting during the cut otherwise, which is worth knowing before you position it for the first time.

The honest verdict on the 861

At 4.2 stars across 1771 reviews, this is the most reviewed jig in the roundup by a wide margin, and the rating distribution is healthy with 61 percent five-star. The aluminum body and integrated clamping are what earn the loyalty; the bit is what draws the complaints.

For a first dovetail jig, a small shop, or anyone who wants one tool to cover three joint styles, it is hard to argue with. Just budget for a better bit and clamp it down properly.

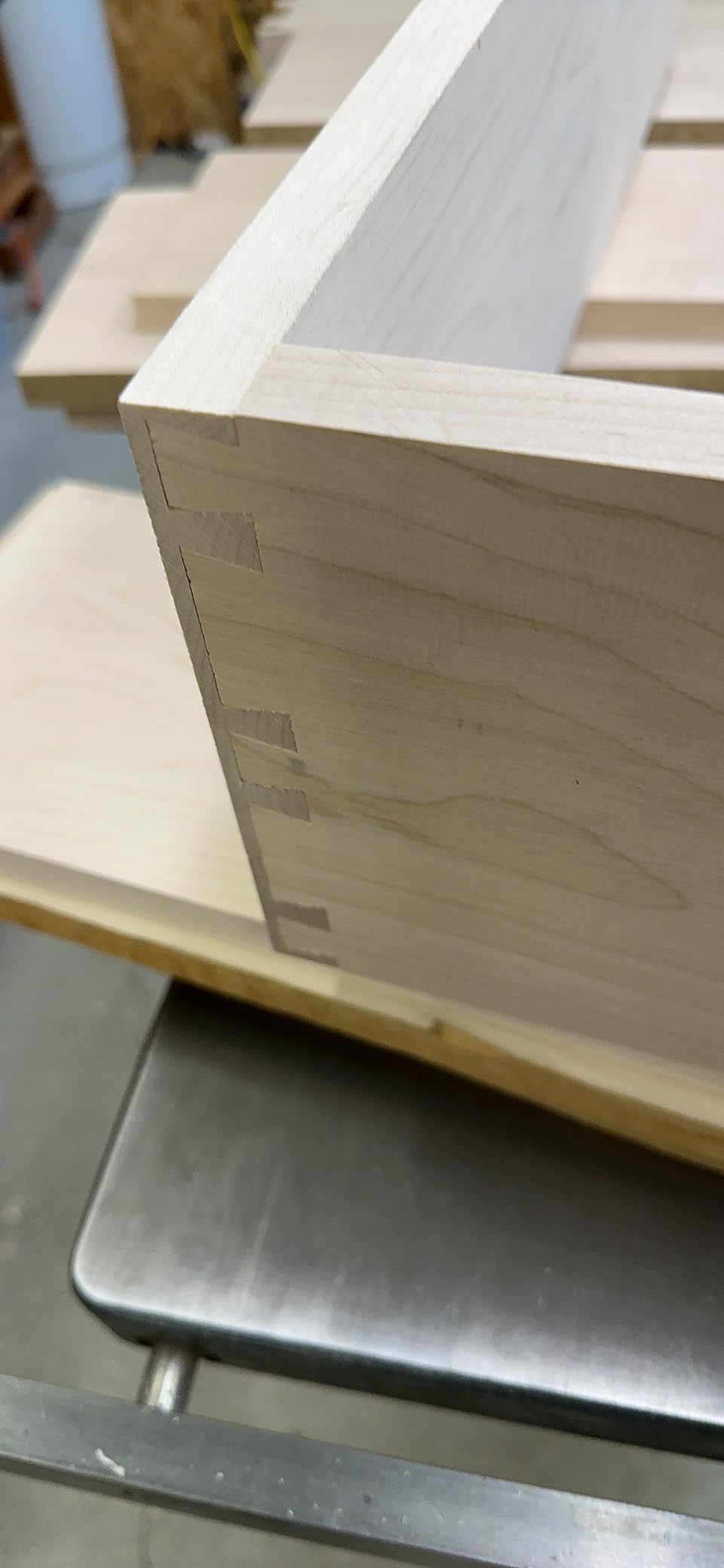

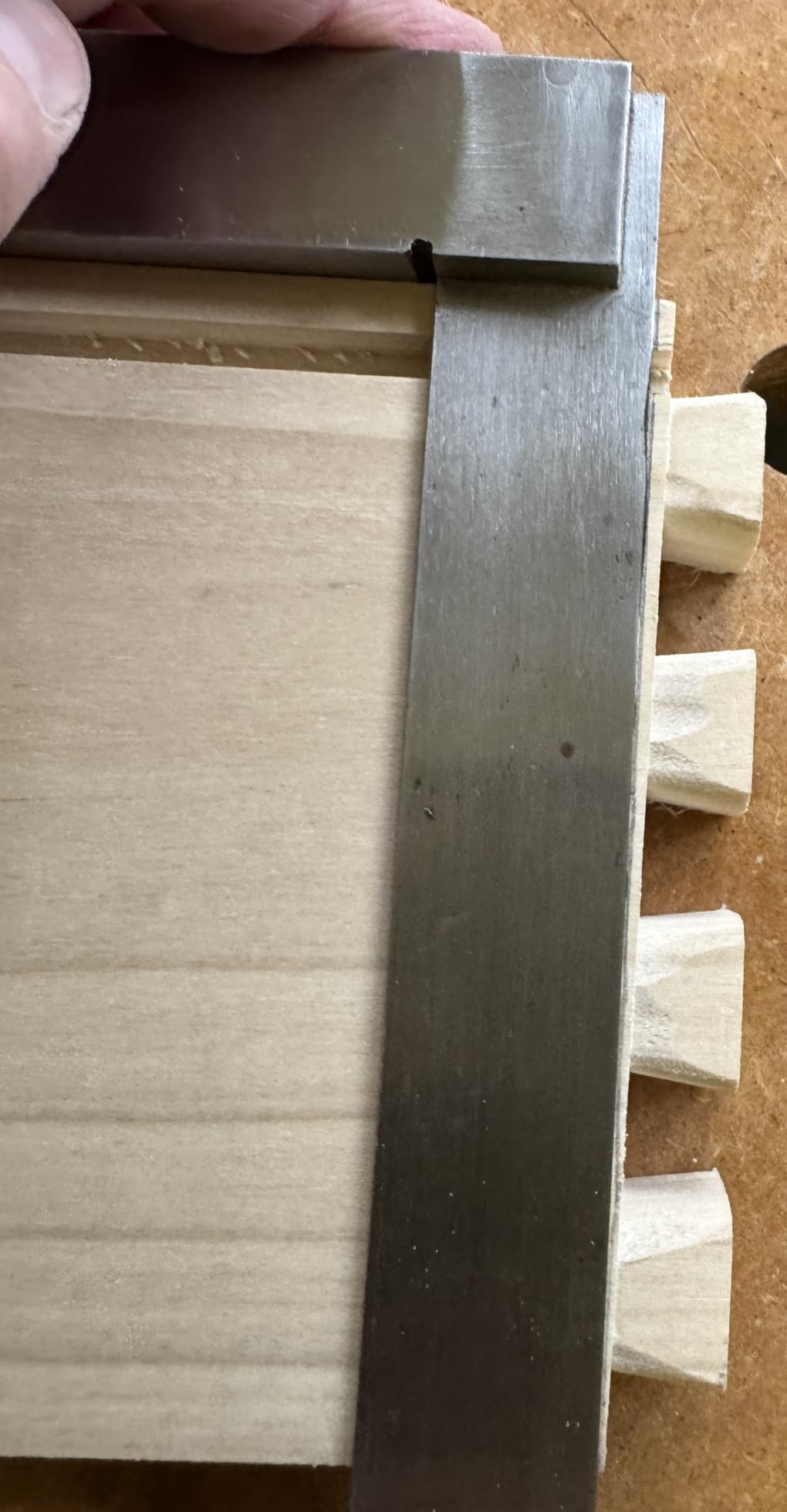

6. Leigh D4R-PRO – Full Width Capacity and Chunky Pins

The D4R-PRO exists to do something no other jig on this list does: cut genuinely wide boards with genuinely chunky pins. It handles work up to 24 inches wide, and the maximum pin thickness is 1-1/4 inches. If you are building a blanket chest or a large period-style cabinet, that capacity is the whole reason to own it.

The base is a one-piece aluminum extrusion rather than a bolted assembly, and that is where the fit quality comes from. With no joints in the frame, there is no flex to absorb router pressure, and owners report handmade-looking pins and tails as a result.

Needle-point pins are a deliberate style

The pin profile is needle point, a slim rectangular tail that reads as traditional furniture joinery. If you like that look this is a genuine advantage. If you are building contemporary flat-pack-inspired pieces, the profile may not be what you pictured, and it is not changeable on this machine.

Three carbide router bits are included, which is generous, and owners building large pieces tend to stay with the machine for its width and build quality rather than its price.

Honest assessment of the trade-offs

At more than 22 pounds and 36 inches long, this is the largest and heaviest jig here, and it needs clear floor or bench area to swing. Buyers who love it tend to be building big furniture in a space that can accommodate it.

The rating profile deserves attention: 59 percent five-star and 17 percent four-star, but 11 percent one-star. Owners cite setup and alignment issues in those reviews, which usually means the learning curve is steeper than a template jig.

If your projects are boxes, small drawers or anything under a foot wide, this machine is far more than you need. If you build large case goods with visible joinery, no other jig on this list carries a comparable width rating.

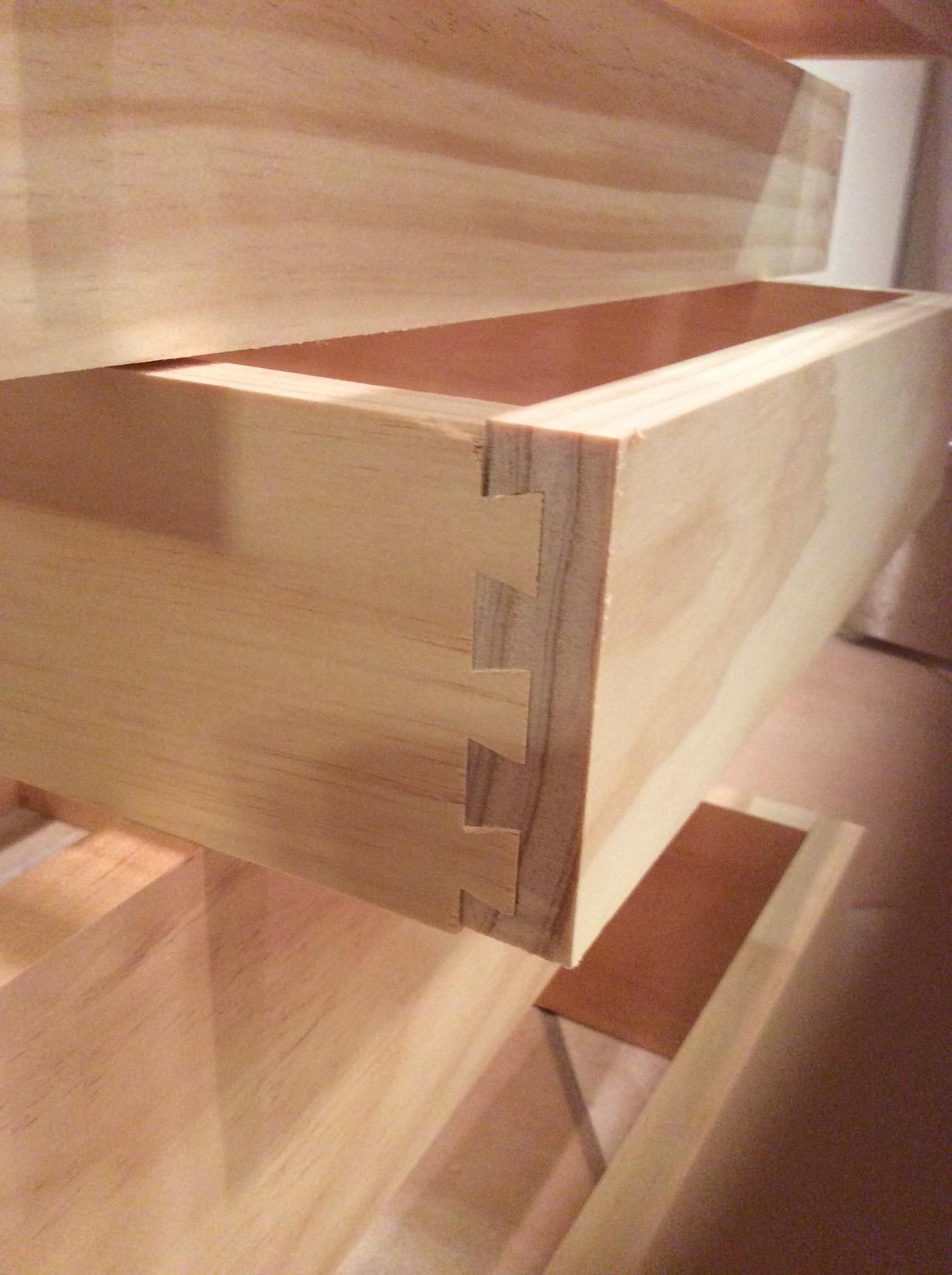

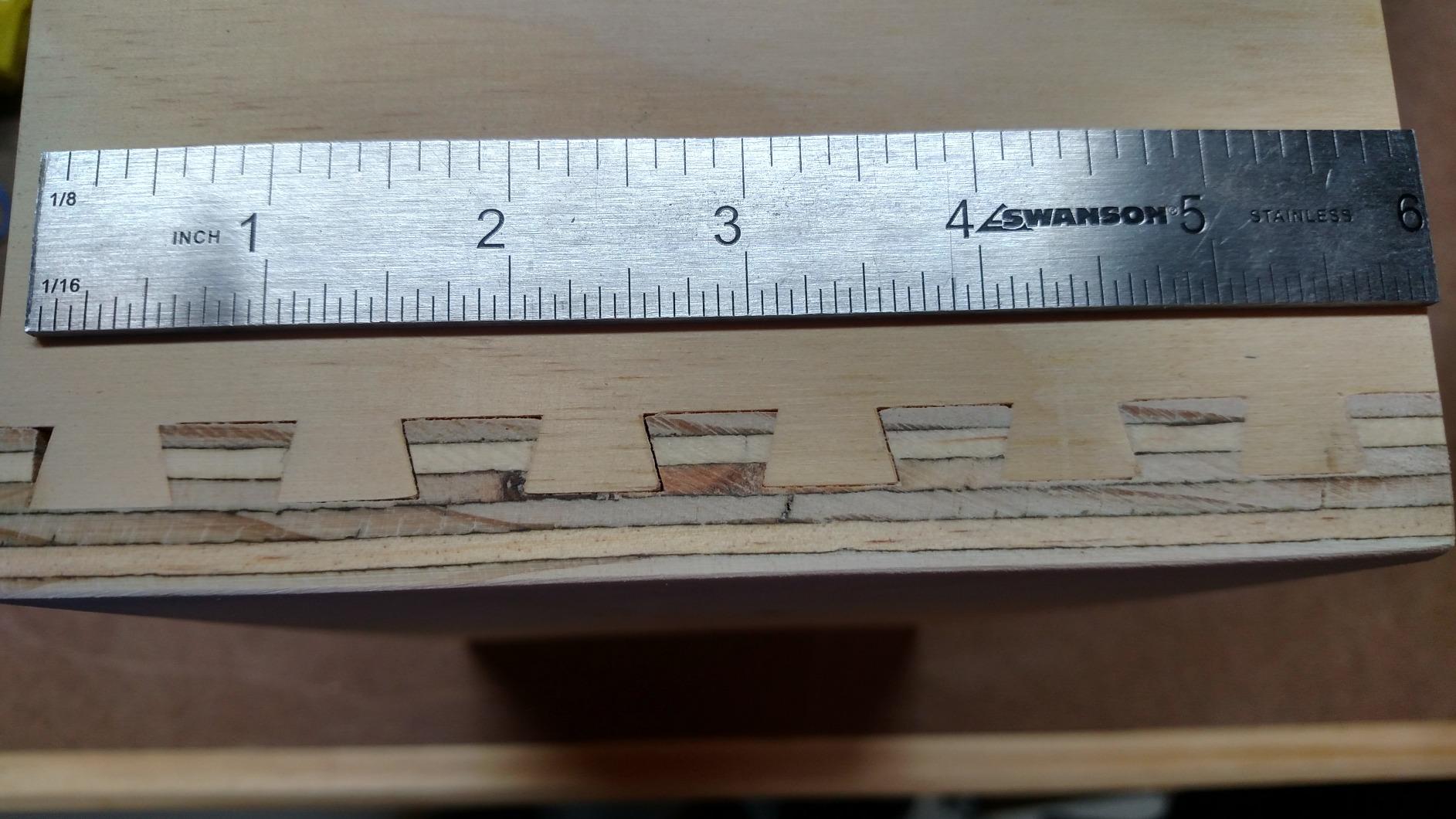

7. Woodstock D2796 – The Straightforward Half-Blind Drawer Jig

The Woodstock D2796 does one job deliberately: it makes true 1/2 inch half-blind dovetails, the classic drawer joint. It does not try to be a universal jig, and that narrow focus is both its simplicity and its limitation.

The frame is alloy steel and aluminum, and once you mount it properly it stays where you put it. The adjustable tail stop is a genuinely useful feature for getting bit depth set consistently, and a 1/2 inch aluminum template is included in the box.

Expect to do some setup work

This is the lowest-rated jig in the roundup at 3.8 stars, and the reasons are specific rather than general. Owners report side stops that will not hold square, a fence that slips under clamping pressure, and cam clamps using plastic bushings that crack under light load.

Several owners also report T-nuts standing proud of the brackets after tightening, which removes clamping force until you file them down. That is a ten-minute fix with a file, but it is a fix you should expect to do.

The jig setting guide is also reported to be inaccurate in some units, even when checked with calipers. Budget time to verify the setup yourself rather than trusting the supplied numbers.

Accessories are a separate purchase

The router bit and guide bushing are not included. You need a 7/16 inch guide bushing and a 1/2 inch 14-degree dovetail bit with a 1/2 inch shank, bought separately. That is normal for this price tier, but it means the true cost is higher than the jig alone.

The instruction manual is also reported as poorly laid out, which adds setup time for a first-time user.

When it makes sense

Despite the rating, there is a core group of owners who cut clean dovetails after fixing the fence and T-nut issues. If your entire project list is half-blind drawer joints at 1/2 inch, the jig is purpose-built and mechanically solid.

The distribution tells the fuller story: 56 percent five-star but also 14 percent one-star, a spread wider than any other product here. Inspect it on arrival, check the plate for square with a straightedge, and it will probably serve you well. Buy blind and you might not.

How to Choose a Dovetail Jig: 7 Criteria That Actually Matter

1. Start with the joint type you build most

A through dovetail has visible tails on both faces and is the strongest option, which makes it the right choice for boxes, chests and visible joinery. A half-blind dovetail hides the tails on one face, and it is the standard for drawer fronts and cabinet carcasses. A sliding dovetail is a routed groove-and-tenon used in carcass construction, and a box joint is a square interlocking joint that gives no mechanical strength but assembles fast.

Only some jigs cover everything. The Keller and the Peachtree are through-dovetail machines. The General Tools 861 and the CMT300 cover multiple joint styles. The Leigh RTJ400 covers the widest range of all from a single template. Match the joint to your project list before you match anything else.

2. Template jig or adjustable fingers?

A template jig uses a fixed machined plate with predrilled slots. Clamping is integrated, spacing is fixed, and the joint is repeatable with minimal adjustment. An adjustable finger jig lets you set finger width, number and spacing by hand, which gives more layout freedom at the cost of a longer setup and a steeper learning curve.

For most home shops, the template approach is the right default. Adjustable finger systems reward you once you are producing a lot of varied work, which most beginners are not yet doing.

3. Check the material thickness range against your stock

This is the fastest way to buy the wrong jig. The CMT300 covers 7/16 inch to 1 inch, the Keller covers 1/8 inch to 3/4 inch, the Peachtree covers roughly 5/8 inch to 3/4 inch, and the General Tools 861 is a template jig sized around common drawer stock.

Measure the thinnest and thickest material you actually work with, then confirm the jig covers both ends of that range. A jig that barely fits your stock will have you making test cuts or chasing a second jig.

4. Board width and workpiece size

Most jigs claim unlimited board width, which is true in principle but limited by the template footprint. The Peachtree’s template is small, the Keller’s is 15 inches, and the Leigh D4R-PRO handles boards up to 24 inches wide.

Long drawer sides and wide panels need a long template or you will be realigning the workpiece constantly. Check the template length against your longest part.

5. Router and guide bushing compatibility

Every jig on this list needs a router with a guide bushing, and the bushing size is jig-specific. The Leigh RTJ400 uses a Leigh e-Bush, which in turn requires a router table with a counterbore insert ring adapter. The Woodstock D2796 needs a 7/16 inch guide bushing and a 1/2 inch 14-degree bit with a 1/2 inch shank, both sold separately.

Before buying any jig, confirm what bushing it needs and whether your router table supports it. This is the single most common reason a buyer ends up returning a fully functional machine.

6. Dovetail bit angle: 14 degree, 7 degree, or wider

Most jigs here ship with or specify a 14-degree bit, which is the traditional angle and works with hardwood cabinet stock. A 7-degree bit, included with the Peachtree kit, produces a steeper, more decorative pin with slightly less material at the pin neck.

The angle is largely a function of the jig’s template geometry, so you cannot simply swap bits between jigs. Buy the bit the jig was designed for and resist the urge to experiment.

7. Dust collection, the gap nobody covers

Dust collection is the most under-discussed issue in this category, and forum discussions of dovetail jigs raise it more often than product pages do. Handheld router setups throw chips straight into the air because there is nowhere to put a hose, and small template jigs leave almost no gap between the jig and the workpiece for a nozzle to reach.

Router-table jigs fare better simply because the dust hood on the table sits below the workpiece. If you work indoors or care about finish quality, weight this criterion more than most buyers do.

How to Set Up and Use a Dovetail Jig Without Wasting Material

Setup time is where most scrap wood is lost, so a deliberate routine pays for itself in the first afternoon. Work through these steps once and you will rarely need more than a single test joint again.

1. Mount the jig solidly. Whatever the design, it cannot shift during the cut. Bench-mount a template jig, and for router-table models confirm the tracks or base sit flat without rocking.

2. Fit the correct bushing and bit. Install the specified guide bushing for your jig, then the specified dovetail bit. Check that the bushing sits flush against the template without wobble before you power anything up.

3. Set bit depth from a test piece. Make a scrap test piece at your exact material thickness. Set the bit so the tails reach the baseline but do not cut through, then mark that depth on the jig so you can return to it.

4. Make one sacrificial test joint. Cut both parts from scrap of the same thickness. If the joint slides in with light hand pressure, the fit is right. If it needs a mallet, you are too tight; if it falls apart, loosen by a hair and repeat.

5. Tune with the fit adjusters. On jigs with a micro-adjust interface, correct a loose or tight joint there rather than changing the bit. On fixed-stop jigs, adjust the stop position instead.

6. Use a backer board on hard or figured stock. A sacrificial board under the workpiece prevents blowout on the show face and is the single cheapest improvement to your joints, especially on dense exotics.

7. Clean the template between cuts. Dust and pitch in the slots change the bushing path. A brush after every joint keeps the fit consistent across a batch.

Frequently Asked Questions

Final Verdict: Which Dovetail Jig Should You Buy?

If you want the best dovetail jig overall and your projects are boxes and through dovetails, the Keller 135-1500 Journeyman is the pick. It earns 4.6 stars across 234 reviews with only a 1 percent one-star share, and its no-test-cut template removes the largest source of beginner frustration.

If your material is thick or your parts need to be identical every time, choose the CMT300. Its steel body takes the widest thickness range at 7/16 inch to 1 inch, and the factory-set stops make repeat production painless.

If you already own a compatible router table and want one machine for many joint styles, the Leigh RTJ400 covers the most ground from a single template, though confirm your table has the counterbore insert ring adapter first. For a complete kit with tracks and bits in the box, the Peachtree Master Deluxe is the least frustrating install, provided your stock sits in the 5/8 to 3/4 inch range.

For a first jig in a small shop, the General Tools 861 gives you three joint styles and under three pounds of aluminum, as long as you plan to replace the supplied router bit. The Leigh D4R-PRO earns its place only if you build wide, period-style case goods. The Woodstock D2796 makes classic half-blind drawer joints, but inspect it on arrival and expect to file the T-nuts before the first cut.

Whichever you choose, make one sacrificial test joint in scrap before you touch real stock, and keep a note of your bit depth. That single habit will save you more material than any feature on any of these jigs.
