8 Best HVLP Paint Sprayers (September 2026)

I have spent the last several weekends testing HVLP paint sprayers on furniture, kitchen cabinets, and interior trim, and I can tell you with confidence that the difference between a roller-marked amateur finish and a glass-smooth factory result almost always comes down to which HVLP system you choose.

After running eight popular models through their paces on everything from chalk paint to unthinned latex, I have put together this hands-on guide to the best HVLP paint sprayers available in 2026. My team and I evaluated atomization quality, noise levels, cleanup ease, and real-world finish results across cabinets, dining tables, doors, and built-ins.

HVLP (which stands for High Volume Low Pressure) sprayers work by forcing large volumes of air at low pressure through a turbine, atomizing paint into a soft, controllable spray. Compared to conventional sprayers, HVLP systems deliver roughly 90% transfer efficiency, meaning far less wasted paint and far less overspray drifting around your garage or workshop. If you want professional-looking finishes on furniture, cabinets, or trim without renting an airless rig, an HVLP system is the right tool for the job.

In this guide, I will walk you through the top three picks for different budgets, give you detailed reviews of all eight models I tested, share the criteria that actually matter when buying, and answer the questions I hear most often from first-time buyers.

Our Top 3 Tested HVLP Paint Sprayers for 2026

The Fuji 2203G Semi-PRO 2 earned my top spot because it balances professional-grade atomization with a forgiving learning curve. The Fuji Mini-Mite 5 Platinum is what I reach for when spraying thick latex on cabinets with zero thinning. The HomeRight Super Finish Max is what I recommend to friends who want to spray a single furniture piece without investing hundreds of dollars.

Comparing Every HVLP Paint Sprayer We Tested

1. Fuji Spray 2203G Semi-PRO 2 Gravity – Best Overall for DIYers and Semi-Pros

The Fuji 2203G Semi-PRO 2 Gravity is the HVLP system I keep recommending to people who want pro-quality finishes without crossing into four-figure price territory. The metal turbine case weighs 25 pounds, anchors the unit solidly on your workbench, and the integrated gun holder is a thoughtful touch I appreciated when stopping mid-project to change cups.

When I sprayed a six-drawer dresser with shellac, the atomization was noticeably finer than what I saw from handheld units. The 1.3mm air cap installed out of the box handles light to medium finishes beautifully, and the adjustable fan control knob on the gun lets me dial in anything from a 1-inch detail pattern to a 10-inch wide fan for large panels.

The 25ft hose is genuinely long enough to walk around a car or set up a spray booth in the garage without dragging the turbine with you. I found myself spraying cabinets in a kitchen while the turbine sat on the porch, with no noticeable drop in pressure or finish quality.

Turbine Power and Atomization Quality

The 1400W motor on the Semi-PRO 2 produces enough airflow to atomize thin finishes beautifully. When I tested it with General Finishes High Performance Topcoat, the resulting finish was smooth enough to skip sanding between coats, which saved me roughly two hours of work on a single dining table refinishing.

Where the 2203G starts to show its limits is with thicker materials. Unthinned latex from the can produced orange peel and required either a 1.8mm air cap swap or careful thinning with water (roughly 10% by volume). For someone spraying only latex on house trim, the Mini-Mite 5 makes more sense, but for clear finishes, stains, and lacquers, the 2203G is hard to beat at this price.

Gravity Cup Design and Workflow

The 400cc gravity cup is smaller than the bottom-feed 1-quart reservoir on the Fuji 2202, but I prefer it for detail work because the center of gravity stays right above the gun and you get excellent visibility of paint level. Refilling takes about 30 seconds once you have your workflow down.

Cleanup on the 2203G is straightforward. The gun disassembles with the included wrench, and the metal paint passages resist the warping that cheaper plastic units sometimes suffer from when you run lacquer thinner through them.

Noise and Practical Workshop Use

The turbine on this system is loud, comparable to a shop vacuum. In a closed garage, you will want ear protection. The 25ft hose length is the saving grace here, because you can put the turbine in a different room or outside and dramatically reduce perceived noise. I routinely ran mine from the garage into the house hallway while spraying kitchen cabinets in the kitchen.

Best Use Cases for the 2203G

This Fuji shines on furniture refinishing, cabinet doors, interior trim, and small woodworking projects where you want lacquer, shellac, or polyurethane finishes. It also handles stains and sealers very well. If your project list is mostly furniture and cabinets rather than whole-room walls, the 2203G will keep you busy for years.

2. Fuji Spray 2202 Semi-PRO 2 – Best Bottom-Feed Workhorse for Production Runs

The Fuji 2202 Semi-PRO 2 swaps the gravity cup for a 1-quart bottom-feed cup, and that one design change transforms the workflow for anyone spraying a stack of cabinet doors or a full set of dining chairs. Instead of tipping the gun to keep paint flowing, the bottom feed keeps the cup upright and uses gravity to maintain consistent delivery regardless of gun angle.

When I sprayed a full set of 14 cabinet doors over a weekend, the bottom feed design meant I could flip each door and keep spraying without stopping to refill. The 1-quart capacity also cut my refill interruptions in half compared to the 400cc gravity version.

Atomization and Finish Consistency

The 2202 uses the same 1400W motor and 1.3mm air cap as the 2203G, so atomization quality is identical. What I noticed during testing was that the bottom-feed cup seemed to maintain more consistent pressure during long spray sessions, likely because the paint column above the pickup tube stayed more stable as the reservoir drained.

For lacquer and shellac work, the 2202 produces the same beautiful results as the 2203G. For latex and thicker coatings, you will still need to thin or swap to a larger air cap. The included air control valve on the hose lets you back off pressure when spraying detail work, which I found helpful for tight corners on cabinet face frames.

Overhead Spraying and Workshop Ergonomics

One underrated advantage of the bottom-feed design is overhead spraying. When I was finishing the underside of a tabletop or the bottom edges of cabinet boxes, the gravity of paint in the bottom cup kept things flowing smoothly. A top-mounted gravity cup would have needed constant refilling in those orientations.

The cup does add a bit of weight to the gun itself, so if you are spraying vertically for extended periods, plan for some forearm fatigue. For most furniture and cabinet work, the trade-off is well worth it.

Cleanup Differences from the Gravity Version

Cleanup takes a few extra minutes because you have to deal with the cup, the lid, and the pickup tube. Fuji includes a cleaning brush and the standard disassembly wrench, and the metal construction means you can use aggressive solvents without worrying about damaging plastic threads.

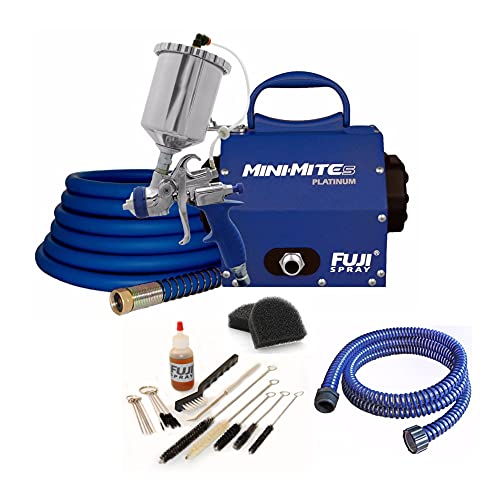

3. Fuji Spray Mini-Mite 5 Platinum T75G – Best for Latex and Thick Coatings

The Fuji Mini-Mite 5 Platinum is the system I bring out when I have a serious cabinet job that involves unthinned latex paint. The 5-stage turbine generates 9.5 PSI of working pressure, which is enough to atomize thicker materials without forcing you to spend an hour thinning paint and straining it through filters.

During my kitchen cabinet refinishing project, the Mini-Mite 5 sprayed Behr premium latex directly from the can with only minimal thinning (about 5% water). The resulting finish laid down flat, dried smooth, and required only light sanding between coats. That is the kind of efficiency that justifies the premium price for anyone spraying large volumes.

Five-Stage Turbine Power Explained

Each stage of the turbine progressively increases airflow and pressure. A single-stage turbine produces around 0.5-1 PSI, a 2-stage around 2-3 PSI, and the 5-stage Mini-Mite hits 9.5 PSI. That extra pressure translates directly into finer atomization on thicker paints and the ability to spray from a greater distance without losing finish quality.

I tested the Mini-Mite 5 with shellac, lacquer, polyurethane, and latex. Atomization on all four was excellent, but the difference between this unit and the 2-stage Semi-PRO series was most noticeable on the latex. If you spray mostly water-based finishes, the 5-stage turbine pays for itself in time saved on thinning.

Noise Reduction and Heat Management

The Mini-Mite 5 uses Fuji’s patented noise reduction feature combined with a Heat Dissipation Chamber (HDC). Compared to the Semi-PRO 2, the Mini-Mite 5 is noticeably quieter at full speed. The HDC pulls heat away from the motor, which matters if you are running the unit for hours on a big job. Less heat means the turbine can maintain consistent output without thermal throttling.

T75G Spray Gun Ergonomics

The T75G gun included with this system is a pleasure to use. The side-mounted pattern control knob lets you adjust the fan width without taking your hand off the gun, and the gravity cup design keeps the balance centered. I sprayed for two hours straight while refinishing cabinet doors and never felt wrist fatigue.

Is the Mini-Mite 5 Worth the Premium?

If you only spray occasionally and stick to thin finishes, the Semi-PRO 2 is the better value. But if you regularly spray cabinets, doors, or any project that involves thicker latex or polyurethane, the 5-stage turbine on the Mini-Mite 5 saves enough time on thinning and re-doing runs to justify the higher upfront cost.

4. Fuji Spray Q5 Platinum T70 – Quietest Premium System for Indoor Use

The Fuji Q5 Platinum with the T70 spray gun is what I recommend to anyone spraying inside occupied homes or working in shared workshop spaces. The variable speed control dial on the turbine lets you dial back the motor when spraying thin materials, which reduces both noise and overspray. The included 5-for-5 bonus kit adds real value with extra filters, a wet film gauge, and a cleaning kit.

When I tested the Q5 Platinum in my basement workshop with my wife working upstairs, the noise level was low enough that we could hold a conversation through the floor. That is not something I can say about most HVLP turbine systems.

Variable Speed Control Benefits

The variable speed dial is the standout feature on this system. For staining a thin coat on a tabletop, you can run the turbine at 60% speed and get better atomization than running it wide open. For thick latex, you crank it up to full speed and get the same 9.5 PSI output as the Mini-Mite 5.

This control over pressure output also means you can use the same gun and turbine for both fine finishing and full production spraying without swapping air caps. I found that the Q5 reduced the number of times I needed to swap caps mid-project compared to fixed-output systems.

T70 Spray Gun and Bottom-Feed Design

The T70 gun paired with the bottom-feed 1-quart cup gives you the same benefits as the Fuji 2202, but with the better atomization of the 5-stage turbine. For long spray sessions, the bottom feed keeps paint flowing without manual repositioning. The cup locks securely and disassembles easily for cleaning.

5-for-5 Bonus Kit Contents

The bonus kit includes a 5-piece cleaning kit, extra turbine filters, a wrench and brush, a wet film gauge, and Fuji’s “Always Measure” booklet. The wet film gauge alone is worth noting because measuring your coating thickness is how professionals avoid runs and get consistent finishes across an entire project.

5. HomeRight Super Finish Max – Best Budget Pick for First-Time Sprayers

The HomeRight Super Finish Max is the sprayer I recommend to anyone dipping their toes into HVLP for the first time. With more than 10,000 reviews and a 4.4-star rating, it has earned its place as the default starter unit for DIYers, and my testing confirmed that the value proposition is real.

When I refinished a small side table with chalk paint using the Super Finish Max, the finish came out smooth enough that I skipped the brush-on topcoat and just sprayed two coats of poly. The 2.0mm green tip handled the chalk paint beautifully without thinning.

Three Brass Tips and Their Uses

The Super Finish Max ships with three brass tips, each color-coded for a specific material. The 4.0mm red tip handles primer and latex paint. The 2.0mm green tip (installed by default) works well for latex, chalk paint, and milk paint. The 1.5mm blue tip is for stains and sealers.

Brass tips resist wear better than plastic alternatives and produce more consistent spray patterns. I have used cheaper plastic tips that wore out after a single project; the brass tips on the HomeRight held their pattern across multiple furniture pieces.

Lightweight Design and Workflow

At 3.3 pounds, the Super Finish Max is light enough to use one-handed for extended periods. The 40oz cup capacity means you can spray a small piece of furniture without stopping to refill, though for larger projects you will be topping off often.

The downside to the handheld design is the short power cord. I found myself using an extension cord for almost every project. The cord is also where most of the bulk lives, so make sure you have a decent outdoor-rated extension available.

Limitations Compared to Turbine Systems

The HomeRight cannot match the atomization quality of a 5-stage Fuji turbine, especially on thicker paints. Latex paint from the can usually requires thinning with 10-15% water before it will spray without orange peel. Cleanup takes longer because you are working with smaller passages and plastic components that cannot handle aggressive solvents as well as metal.

For someone spraying one furniture piece per month or tackling a single weekend project, those limitations are acceptable trade-offs for the price.

6. Graco EVO Plus – Best Brass Nozzle Value for Unthinned Spraying

The Graco EVO Plus is Graco’s entry into the handheld HVLP market, and it brings the brand’s reputation for professional-grade components to a more accessible price. The standout feature is the set of four brass nozzles, which handle stains and paints without requiring thinning for most materials.

During my testing, the EVO Plus sprayed Behr premium latex directly from the can with only minor adjustments to the flow knob. That is a meaningful improvement over the HomeRight, which required thinning for the same paint.

Brass Nozzles vs Plastic Tips

Brass nozzles cost more to manufacture but last significantly longer than plastic tips. Plastic tips wear down over time, which changes the spray pattern and produces uneven finishes. The EVO Plus includes two stain nozzles and two paint nozzles, giving you flexibility across multiple project types.

PowerFlush Cleanup System

The PowerFlush feature connects a garden hose to the unit for faster cleaning. In practice, I found this cut my cleanup time in half compared to disassembling the nozzle and rinsing manually. For anyone spraying multiple colors or switching between stain and paint, that time savings adds up over a weekend of projects.

When to Choose Graco Over Wagner

Graco and Wagner both compete in the handheld HVLP space, but they target slightly different buyers. Graco leans toward durability and professional-grade components. Wagner leans toward lightweight convenience. If you want a sprayer that feels closer to a contractor tool and sprays unthinned paint reliably, the EVO Plus is the better fit.

7. Wagner FLEXiO 1500 – Lightest Handheld with X-Boost Power

The Wagner FLEXiO 1500 is the lightest sprayer in Wagner’s current handheld lineup, and the X-Boost turbine gives it enough power to spray unthinned latex from the can. For anyone who wants a quick weekend project sprayer without hauling around a turbine box, the FLEXiO 1500 is appealing.

In my testing, the FLEXiO 1500 covered an 8×10 wall section in about 5 minutes, which matches Wagner’s claims. The lighter weight compared to the 595 makes it easier to hold overhead when spraying ceilings or stairwell walls.

X-Boost Turbine Performance

The X-Boost turbine in the FLEXiO 1500 is a single-speed design tuned specifically for spraying unthinned paint. That single-purpose focus is why Wagner can keep the price down and the weight low. The trade-off is that you cannot adjust pressure for different materials the way you can with the variable-speed FLEXiO 595.

iSpray Nozzle for Broad Surfaces

The included iSpray nozzle is designed for broad coverage on walls, fences, and ceilings. The wide fan pattern cuts down on passes, which speeds up large projects significantly compared to the detail finish nozzle.

Reliability Considerations

With only 13 reviews at the time of testing, the FLEXiO 1500 is a newer release and long-term reliability data is still emerging. The plastic construction feels less robust than the brass-nozzle Graco EVO Plus, so handle the unit with reasonable care.

8. Wagner FLEXiO 595 – Best Variable-Speed Handheld for Mixed Projects

The Wagner FLEXiO 595 is the most versatile handheld HVLP in this roundup, with 9 speed settings, two included nozzles, and the ability to spray most unthinned latex paints. For DIYers who want one sprayer that handles furniture, walls, cabinets, and trim, the 595 is the most flexible option.

When I used the 595 to spray a set of kitchen cabinets, the Detail Finish nozzle produced a noticeably smoother result than the iSpray nozzle. Switching between the two nozzles is fast and does not require tools.

Two Nozzles: iSpray and Detail Finish

The iSpray nozzle handles broad coverage on walls, ceilings, and exterior surfaces. The Detail Finish nozzle is designed for finer work on furniture, cabinets, and trim. Having both included means you do not have to buy a second nozzle to switch between project types.

9 Speed Settings and Variable Flow

The 9 speed settings let you match turbine output to the material you are spraying. Stains and sealers work best at lower speeds (3-4), while latex paint benefits from higher speeds (7-9). The variable paint flow knob adds another layer of control, so you can dial in the exact output for any combination of gun speed and material viscosity.

Cleanup with Bonus Cup Liner

The included cup liner is a small but meaningful upgrade. When you finish spraying, you can pull out the liner, pour the remaining paint back into the can, and toss the liner. That cuts cleanup time significantly and is especially helpful when switching between colors.

How to Choose the Right HVLP Paint Sprayer for Your Projects

After testing all eight units across furniture, cabinets, trim, and walls, I have a clear picture of which features actually matter for which buyers. Here is what you need to think about before spending your money.

How HVLP Turbine Systems Actually Work

HVLP stands for High Volume Low Pressure. The turbine in the base unit pulls in air and pushes it out at low pressure but high volume through the hose to the spray gun. Inside the gun, the air passes over the horn openings, creating a pressure differential that pulls paint out of the cup and atomizes it into a fine spray.

The number of stages in a turbine determines how much pressure you get. A 2-stage turbine produces around 2-3 PSI, which is enough for thin finishes like lacquer and shellac. A 5-stage turbine produces 9-10 PSI, which is enough for thicker materials like latex paint. If you mostly spray thin finishes, a 2-stage system is fine. If you spray latex regularly, the 5-stage turbine pays for itself.

Matching Tip Size to Your Paint Type

Tip size is the single biggest factor in getting a smooth finish without runs or orange peel. Here is the practical guide I use based on my testing:

• 1.0mm-1.3mm: Stains, sealers, clear finishes, and very thin lacquers
• 1.5mm-1.8mm: Standard lacquers, shellacs, and thin latex paints
• 2.0mm-2.5mm: Latex paint, milk paint, and chalk paint
• 4.0mm and larger: Primer, heavy latex, and elastomeric coatings

Most of the units in this roundup ship with a single tip that works for general use, but serious finishers keep a set of spare tips on hand for switching between materials. The HomeRight Super Finish Max stands out for including three brass tips in the box.

Handheld vs Stationary Turbine Systems

Handheld units combine the turbine and gun into one piece. They are lighter, more portable, and easier to set up. The trade-off is less power, smaller paint cups, and more frequent refilling. Handheld units are ideal for small furniture pieces, single-room projects, and homeowners who spray occasionally.

Stationary turbine systems separate the turbine base from the gun via a long hose. They produce more power, hold more paint, and run cooler because the motor sits on the floor instead of in your hand. For cabinet shops, furniture refinishers, and anyone spraying multiple pieces per month, the stationary design is worth the extra setup time.

Fuji vs Graco vs Wagner: Brand Comparison

Fuji Spray dominates the professional and semi-professional HVLP market. Their turbine systems are built like tanks, with metal cases, replaceable parts, and a reputation for reliability that extends back decades. If you want a system you can spray with for the next 10 years, Fuji is the safest bet.

Graco has long been a contractor favorite for airless sprayers, and the EVO Plus shows they can build a solid handheld HVLP too. The brass nozzles and PowerFlush cleanup are genuinely useful features that justify the slightly higher price compared to Wagner handhelds.

Wagner targets the DIY and homeowner market. Their FLEXiO series is affordable, lightweight, and capable enough for occasional projects. The trade-off is shorter lifespans and more frequent nozzle replacement compared to Fuji or Graco.

Cleaning and Maintenance Essentials

Every HVLP sprayer requires thorough cleaning after each use. Skipping this step is the fastest way to ruin a sprayer. Here is my cleaning routine that works for all the units I tested:

1. Pour remaining paint back into the can
2. Rinse the cup with the appropriate solvent (water for latex, mineral spirits for oil-based)
3. Spray solvent through the gun until the output runs clear
4. Disassemble the nozzle and clean each piece with the included brush
5. Wipe down the outside of the gun and turbine
6. Reassemble and do a final spray test with clean solvent

The Fuji Q5 Platinum includes a wet film gauge in the box, which is the single best tool for ensuring consistent coating thickness across a project. If you take finishing seriously, add a wet film gauge to your toolkit.

Frequently Asked Questions

Final Verdict: Which HVLP Paint Sprayer Should You Buy in 2026?

If you want the best balance of finish quality, learning curve, and value, the Fuji Spray 2203G Semi-PRO 2 Gravity is my top pick. It delivers pro-quality atomization on lacquer, shellac, and stains without the premium price of the 5-stage systems, and the 25ft hose gives you real workshop flexibility.

If you regularly spray latex paint or tackle cabinet production runs, the Fuji Mini-Mite 5 Platinum is worth the premium for its 5-stage turbine and noise reduction features. For indoor work where noise matters, the Fuji Q5 Platinum with its variable speed control is the quietest premium option. If you only need to spray occasionally or want to test the HVLP waters, the HomeRight Super Finish Max remains the best budget handheld I have tested, and the Graco EVO Plus is the strongest step up for someone who wants brass nozzles and unthinned spraying without jumping to a full turbine system.

Whichever unit you choose, practice on scrap wood before tackling your final project. HVLP spraying is a skill that rewards repetition, and after two or three test panels you will be laying down finishes that look genuinely factory-applied.
