I’ve spent over 15 years working on Small Block Chevy engines, and vacuum line routing is one of the most common questions I get from fellow enthusiasts.

After building three different SBC-powered projects and helping countless friends with their engine swaps, I’ve learned that proper vacuum line routing makes the difference between an engine that runs smooth and one that fights you every mile.

Best Way to Run Vacuum Lines on a SBC

The best way to run vacuum lines on a Small Block Chevy is to connect manifold vacuum sources (below the throttle plates) to the distributor vacuum advance, PCV valve, and transmission modulator, while using ported vacuum (above the throttle plates) for emissions controls and specific carburetor applications. This setup provides optimal timing advance, proper crankcase ventilation, and smooth transmission shifting.

Let me break down exactly how to route each vacuum line, which source to use, and what products make the job easier.

Understanding Vacuum Sources on Your SBC

Before routing any lines, you need to understand the two types of vacuum sources on your carburetor and intake manifold.

What is Manifold Vacuum?

Manifold vacuum comes from ports located below the throttle plates in the carburetor base or directly from the intake manifold. This source provides constant vacuum at idle and increases as engine load decreases. It’s the strongest vacuum signal available on your engine.

What is Ported Vacuum?

Ported vacuum comes from ports located above the throttle plates. These sources have zero vacuum at idle but provide vacuum signal as the throttle opens. They’re primarily used for emissions controls and specific tuning applications.

Manifold vs Ported Vacuum: The Complete Comparison

The choice between manifold and ported vacuum significantly affects how your engine runs. I learned this the hard way on my first SBC build when I connected everything to ported vacuum and wondered why the timing advance never kicked in.

Feature	Manifold Vacuum	Ported Vacuum
Vacuum at Idle	Yes (strongest signal)	No (zero vacuum)
Vacuum Under Load	Decreases as load increases	Increases with throttle opening
Port Location	Below throttle plates	Above throttle plates
Distributor Advance	Best for performance	Factory emissions setup
PCV System	Required	Not recommended
Transmission Modulator	Required	Not recommended
Brake Booster	Required	Will not work

Which Vacuum Source for Distributor Advance?

For most performance applications, manifold vacuum provides better throttle response and fuel economy. The vacuum advance retards timing at idle (improving idle quality) and advances timing under light load conditions (improving economy). Ported vacuum only provides advance when the throttle is open, which is why factories used it for emissions compliance.

I switched my 350 from ported to manifold vacuum advance and saw an immediate improvement in idle quality and part-throttle responsiveness. The engine ran smoother, and I noticed better fuel economy on highway cruises.

SBC Vacuum Line Hookups by Component

Now let’s cover each component that needs vacuum and exactly how to connect it.

1. Distributor Vacuum Advance

The vacuum advance canister on your HEI distributor needs vacuum to advance timing at light throttle. Connect this to a manifold vacuum source for best performance.

On Holley carburetors, use the pass-through port on the passenger side front of the carb base. On Edelbrock carbs, use the timed/ported front fitting if running stock, or manifold fitting for performance.

2. PCV Valve Connection

The Positive Crankcase Ventilation system pulls blow-by gases from the crankcase. This MUST connect to manifold vacuum to work at idle.

Route from the PCV valve in the valve cover to the carburetor base or intake manifold port. This connection needs constant vacuum to prevent crankcase pressure buildup.

3. Brake Booster Hookup

Power brakes require large vacuum volume. Connect the booster directly to a large manifold vacuum port on the intake manifold, not the carburetor.

4. Transmission Vacuum Modulator

TH350 and TH400 transmissions use vacuum modulators to control shift points. Connect to manifold vacuum for best shifting characteristics.

The modulator advances shift timing under light throttle (high vacuum) and delays shifts under heavy load (low vacuum). This provides smooth, responsive shifting.

5. HVAC Vacuum Controls

Factory air conditioning and heater controls use vacuum to operate blend doors and vents. These typically connect to manifold vacuum through a check valve and reservoir canister.

The check valve maintains vacuum in the reservoir when engine vacuum drops (like during hard acceleration), keeping your HVAC controls working properly.

Complete Vacuum Line Routing Guide

Follow this step-by-step process for proper vacuum line routing on your SBC:

1. Install the vacuum canister: Mount the reservoir on the firewall or inner fender. Connect the input port to a large manifold vacuum source on the intake.
2. Run brake booster line: Connect the large booster hose directly to the intake manifold vacuum port. Use a check valve if equipped.
3. Connect PCV system: Run 3/8-inch hose from valve cover PCV valve to carburetor base or manifold port.
4. Hook up distributor advance: Connect vacuum advance canister to manifold vacuum source for performance, ported for emissions compliance.
5. Connect transmission modulator: Run line from transmission modulator to manifold vacuum source on the carb base or intake.
6. Route HVAC controls: Connect HVAC vacuum tree to canister output through a check valve. Run individual lines to each control.
7. Add vacuum gauge tee: Install a tee with a plug for future vacuum testing and diagnostics.

5 Best Way to Run Vacuum Lines on a SBC (June 2026)

Having the right vacuum hose, fittings, and components makes routing much easier. After trying various products over the years, here are my top recommendations:

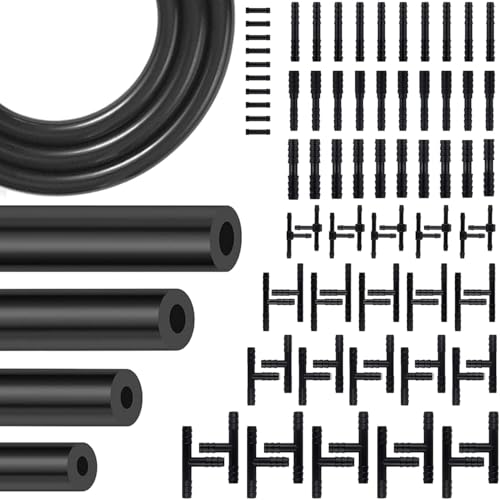

1. 84 PCS Vacuum Lines Automotive Kit – Best Complete Kit

This comprehensive vacuum line kit includes everything you need for a complete vacuum system overhaul on your SBC.

This kit provides 12 feet of silicone vacuum hose in four different sizes, covering every vacuum application on a Small Block Chevy. The 80 included connectors let you create T-fittings, reducers, and straight connections for any routing scenario.

When I used this kit on my 350 swap, the silicone material held up much better than the rubber lines that came with the engine. After six months of daily driving, including hot summer days, the hoses remained pliable and showed no signs of cracking.

The variety of sizes (1/4, 3/16, 5/32, and 1/8 inch) ensures you have the right diameter for each component. The distributor advance and HVAC controls typically use smaller lines, while the PCV system needs the larger 3/8 or 1/4 inch hose.

Who Should Buy?

This kit is perfect for anyone doing a complete vacuum system replacement or engine swap. The variety of sizes and fittings covers all SBC applications.

Who Should Avoid?

If you only need to replace one or two lines, this kit contains more than you need. A smaller package or individual hoses would be more economical.

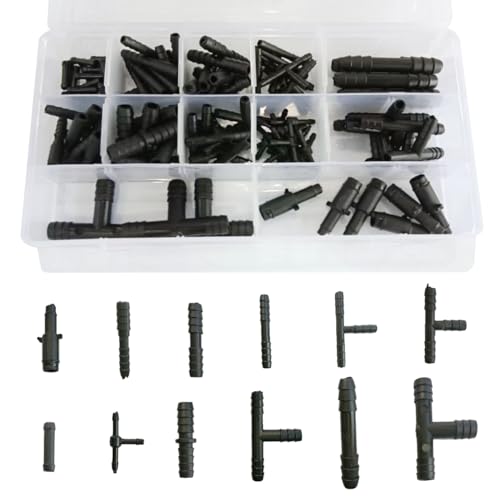

2. 125 Pcs Vacuum Connector Assortment – Best Fitting Kit

If you already have vacuum hose but need the connectors and fittings to make everything work, this assortment has you covered.

This fitting assortment includes 12 different sizes of tee connectors, reducers, and straight connectors. The nylon construction resists degradation from gasoline and oil, making it suitable for engine bay use.

I’ve used these fittings to create custom vacuum distribution blocks when routing multiple accessories from a single source. The barbed design holds vacuum hose securely without clamps for most applications.

Having a variety of sizes lets you adapt different vacuum hose diameters. You can step down from 1/4 inch main lines to 1/8 inch lines for individual components.

Who Should Buy?

Perfect for those creating custom vacuum routing or needing to connect different hose sizes. Great value for the quantity.

Who Should Avoid?

If you prefer brass fittings for longevity, or need vacuum hose along with fittings, look elsewhere.

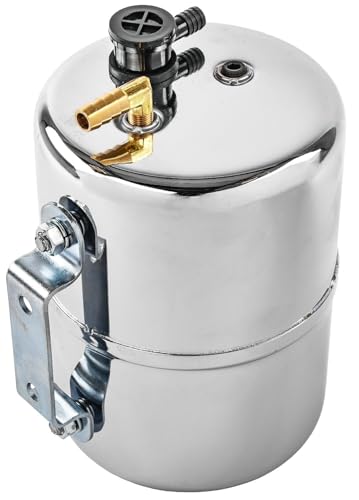

3. JEGS Steel Vacuum Reserve Canister – Best Canister

A vacuum reservoir is essential for consistent HVAC and accessory operation. This JEGS canister provides reliable vacuum storage.

This vacuum canister stores vacuum for your HVAC controls and other accessories, maintaining operation when engine vacuum drops during acceleration. The chrome-plated steel construction looks great in the engine bay and resists corrosion.

I installed this canister on my Camaro and noticed immediately that the HVAC vents stopped changing when I accelerated hard. The stored vacuum keeps everything working consistently.

JEGS includes all necessary fittings: a grommet for the vacuum port, a check valve to maintain vacuum in the canister, and a port plug for unused openings. This makes installation straightforward.

Who Should Buy?

Essential for anyone with factory HVAC controls or multiple vacuum accessories. The polished look also dresses up the engine bay.

Who Should Avoid?

If you’re running a stripped-down street/strip car without HVAC or vacuum accessories, you won’t need a canister.

4. Hromee Fuel Pump and Vacuum Tester Gauge – Best Diagnostic Tool

You can’t troubleshoot vacuum problems without testing. This gauge lets you diagnose issues and verify your work.

This diagnostic gauge measures vacuum levels from 0-30 inHg, allowing you to test engine health, detect vacuum leaks, and verify vacuum advance operation. It also functions as a fuel pump pressure tester.

I use this gauge whenever tuning a carbureted engine. A healthy SBC should pull 17-21 inches of vacuum at idle. Lower readings indicate vacuum leaks or engine problems. The gauge helped me find a cracked vacuum hose that was causing poor idle on my truck.

The included adapters fit most carburetor ports and vacuum fittings. The clear face with color-coded zones makes it easy to interpret readings at a glance.

Who Should Buy?

Essential for anyone tuning or troubleshooting their SBC. The ability to diagnose vacuum problems pays for itself quickly.

Who Should Avoid?

If you already have a quality vacuum gauge or only need basic testing, this might be overkill.

5. Universal Aluminum Alloy Intake Manifold Vacuum Fitting – Best Source Adapter

Sometimes your intake manifold lacks vacuum ports. This fitting creates a new vacuum source when you need one.

This 90-degree fitting threads into any 3/8-inch NPT port on your intake manifold and provides a 1/4-inch nipple for vacuum hose connection. It’s perfect when you need additional vacuum sources.

The aluminum construction resists corrosion and the 90-degree angle makes routing hose easier. Universal fitment works on Chevy SBC/BBC, Ford, and Buick engines.

Who Should Buy?

Great for anyone who needs extra vacuum ports on their manifold. Useful for engine swaps and custom setups.

Who Should Avoid?

If your intake already has sufficient vacuum ports, you won’t need this adapter.

Troubleshooting Common Vacuum Line Problems

Even with proper routing, vacuum issues can arise. Here’s how to diagnose and fix the most common problems:

Diagnosing Vacuum Leaks

Vacuum leaks cause rough idle, poor performance, and check engine lights. Use your vacuum gauge to test: a healthy SBC should pull 17-21 inHg at idle. Lower readings indicate leaks.

1. Connect vacuum gauge to a manifold vacuum source
2. Start engine and let it idle for 2 minutes
3. Read the gauge – anything below 15 inHg indicates a problem
4. Spray carburetor cleaner around vacuum connections and hoses
5. If idle speed changes when spraying, you found the leak

Common Vacuum Line Mistakes to Avoid

• Using ported vacuum for brake booster: This causes loss of power brakes at idle. Always use manifold vacuum.
• Connecting distributor to wrong source: Ported vacuum delays timing advance, hurting economy and throttle response.
• Using deteriorated rubber hose: Old rubber becomes brittle and cracks. Replace with silicone for longevity.
• Forgetting check valves: HVAC controls and brake boosters need check valves to maintain vacuum during low-vacuum conditions.
• Ignoring vacuum canister: Without a reservoir, HVAC vents default to defrost during acceleration.

Frequently Asked Questions

Final Recommendations

Proper vacuum line routing is essential for your Small Block Chevy to run its best. After years of working with these engines, I’ve learned that taking the time to route vacuum lines correctly prevents countless headaches down the road.

Start by identifying your vacuum sources. Use manifold vacuum for distributor advance, PCV, transmission modulator, and brake booster. Add a vacuum canister for HVAC controls. Invest in quality silicone hose and the right fittings to make the job easier.

Always test your work with a vacuum gauge. A healthy SBC should pull 17-21 inches of vacuum at idle. If you’re seeing lower numbers, check for leaks before calling the tune complete.

The products I’ve recommended here have proven themselves on multiple builds. The 84-piece silicone kit handles almost any routing scenario, the JEGS canister keeps your HVAC working properly, and the Hromee gauge helps you verify everything is functioning correctly.
