8 Best Welding Positioners (August 2026) for Hobbyists & Pros

If you have ever tried to lay a clean bead around a 10-inch pipe while crouched under a frame, you already understand why the best welding positioners are not a luxury, they are an arm-saver. A positioner rotates and tilts the workpiece so you can keep the torch in the flat or horizontal position where the weld pool behaves. Our team spent the past several months evaluating rotary welding positioners across hobby, fabrication, and pipe-welding duty cycles to find the units that actually deliver on their spec sheets.

The market is crowded with turntables promising “50kg capacity” that wobble under half that load, which is a complaint we saw again and again in Miller and WeldingWeb forums. So we filtered for real-world rotation smoothness, motor torque, chuck quality, and tilt stability rather than marketing numbers. In this 2026 guide we cover benchtop units for small parts, floor-mounted positioners for fabrication shops, and tank turning rolls for pipe and pressure vessel work.

Whether you are a hobbyist TIG welding thin-wall tube, a fabricator building frames, or a shop running circumferential seam welds on tanks, our picks below cover the most relevant categories. We also break down what specs actually matter, what to skip, and where budget brands like VEVOR fit versus premium names like Baileigh. Here are the eight welding positioners we recommend this year.

Our Top 3 Tested Welding Positioners for 2026

These three cover the spectrum: a serious mid-capacity shop positioner, a value pick with thoughtful TIG-friendly features, and an entry-level benchtop unit that gets the job done for small parts. Read on for the full breakdown of all eight.

Comparing the Best Welding Positioners in 2026

We organized the table above from light benchtop models down to heavy tank-rolling rigs. Use it as a quick filter, then dig into the individual reviews for the duty cycle and feature nuances that do not show up in spec sheets.

1. VEVOR 10KG Rotary Welding Positioner – Compact Precision for Small Parts

This is the unit I would hand to a hobbyist who is just getting into TIG work on small parts. The VEVOR 10KG sits at the entry-level end of the spectrum, but for thin-wall tube, nuts, bolts, and small fixtures it does exactly what a welding positioner turntable should do: rotate smoothly and stay put when you stop.

The 20W motor is small, but it is matched to a self-locking worm gear that holds tilt without creeping, something budget positioners often fail at. The included 205mm three-jaw chuck clamps parts from 2 to 58mm, which covers a lot of small prototype work. Stepless speed control from 1 to 12 RPM plus a foot pedal means you can dial in a steady bead travel without taking your hands off the torch.

Real talk from the forums: this is one of the most popular budget welding positioners mentioned on r/Welding and mig-welding.co.uk, with the main complaint being that the advertised “10KG” capacity assumes an ideal horizontal load. Plan for closer to 5KG when you tilt past 45 degrees.

20W Motor & Speed Range

The 20W motor delivers 1 to 12 RPM through stepless speed control. For TIG on thin material, the low end of 1 RPM is where you will spend most of your time. MIG and grinding work can push toward the upper end. Speed hold under load is acceptable for small parts but expect some slowdown when you add chuck weight or off-center mass.

3-Jaw Chuck & Clamping

The K01-63 three-jaw chuck is self-centering with a 2 to 58mm clamping range. That covers everything from M6 bolts up to medium pipe fittings. The chuck runs true enough for precision welding, which is impressive at this price tier.

Tilt Mechanism & Foot Pedal

Tilt range is 0 to 90 degrees via a butterfly bolt with a self-locking worm gear. Once set, the table holds position without drift, which is the single most important feature for repeatable welds. The foot pedal handles 360-degree rotation control hands-free.

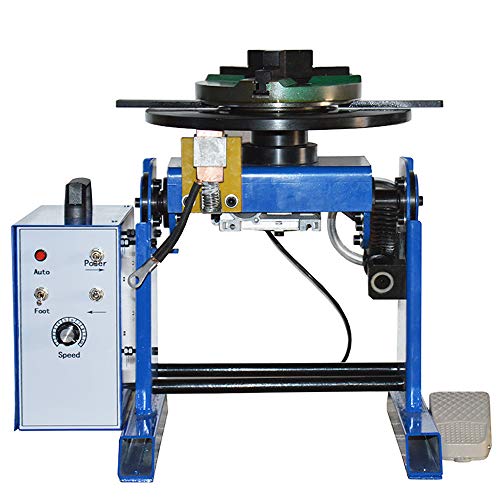

2. TECHTONGDA 50KG Rotary Welding Positioner – Best Value for Serious Shops

TECHTONGDA sits in the sweet spot between hobby benchtop units and industrial floor models. The 50KG load rating makes it viable for medium pipe fittings, flanges, and ring welding work that the smaller VEVOR cannot handle.

What stands out is the anti-electromagnetic design, which is specifically engineered to reduce TIG welding interference. If you have ever had high-frequency starts glitch out because of positioner motor noise, this is a meaningful feature, not marketing fluff. A name-brand DC motor handles stepless speed regulation, and the time-controller lets you set a repeatable cycle, which matters if you are running batches of the same part.

The package includes an adjustable welding gun support and footswitch, two accessories that other brands charge extra for. Combined with CO2, MIG, MAG, and TIG compatibility, this is a true shop-grade positioner at a mid-tier investment.

50KG Load Capacity in Practice

The 50KG rating covers horizontal loads with the table flat. When tilted toward 90 degrees, expect real-world working load to drop. For ring and circumferential welds on flanges and short pipe sections, this is plenty. Heavier structural work will outgrow this unit.

Anti-EMI Design for TIG Welding

The anti-electromagnetic circuitry reduces interference that can disrupt high-frequency arc starts and lift-arc TIG. For TIG purists running sensitive inverters, this is the difference between a positioner that just works and one you have to fight.

Time-Controller & Accessories

The built-in time-controller lets you set a defined rotation period for repeatable weld lengths. Add the included footswitch and adjustable gun support, and you have a complete hands-free setup out of the box.

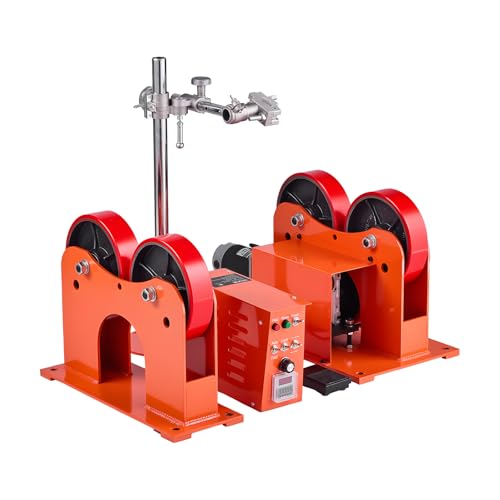

3. VEVOR Turning Rolls Linkage Roller – Best for Pipe & Tank Welding

When you move from benchtop parts to tanks, pressure vessels, and long pipe sections, a chuck-style positioner no longer cuts it. This VEVOR turning rolls linkage roller is built for the big stuff, with a 2205-pound capacity and adjustability for 2 to 24-inch diameter workpieces.

The polyurethane rollers run quiet and absorb shock, which protects both the workpiece surface and your ears during long shifts. Rotation speed is variable from 3.15 to 63 inches per minute via a 120W motor, fast enough for productive MIG work on circumferential seams but slow and steady enough for TIG root passes.

Dual control via electric panel and foot pedal gives the operator options. As a new release in 2026, this unit has no reviews yet, but VEVOR tank turning rolls are a known quantity in fabricator forums and consistently praised for value relative to industrial brands.

2205 lbs Capacity & Pipe Range

A 2205-pound load rating is enough for substantial tanks and long pipe spools. The 2 to 24-inch diameter adjustment covers most shop work, from medium pipe up to sizeable vessel sections. For anything beyond 24 inches, you would move to a custom roller setup.

Polyurethane Roller Quality

PU rollers grip the workpiece firmly without marring polished surfaces. They also absorb vibration, which keeps the rotational speed steady even on out-of-round pipe. Compared to steel rollers, PU is the right choice for stainless and aluminum work.

Speed Control & Dual Operation

The 3.15 to 63 inch-per-minute range covers TIG root passes at the low end up to higher-deposition MIG capping. The electric panel allows precise setup, while the foot pedal frees your hands for torch manipulation during the weld.

4. PreAsion Tank Turning Welding Rolls – Digital Speed, Forward & Reverse

The PreAsion tank turning rolls compete directly with the VEVOR unit above, and in early customer feedback it has earned perfect scores. The 2200-pound load capacity and 2 to 24-inch diameter range put it in the same heavy-pipe and tank class.

Two features set it apart. First, the digital speed display gives you a numerical readout in millimeters per minute rather than guessing from a dial position, which is a real upgrade for repeatable work. Second, both auto and foot switch manual modes are included, along with forward and backward rotation. That bidirectional capability matters when you need to back up for a tie-in or rework.

The PU-coated rollers provide good friction on stainless and carbon pipe without scuffing. For circumferential and longitudinal seam welding on tanks, this is a complete industrial-grade setup that lands in the same investment range as the VEVOR alternative.

Digital Speed Display

A digital readout in mm/min removes the guesswork from rotation speed. When you find the sweet spot for a particular joint and process, you can dial it back in exactly next time. For shops running production batches, this matters.

Forward & Reverse Operation

Bidirectional rotation lets you reposition for tie-ins, restarts, and inspection without unclamping. Auto mode handles continuous runs while the foot switch gives you manual fine-tune control during the weld itself.

Polyurethane Rollers for Clean Work

PU roller coating grips the workpiece and protects polished surfaces. For shops welding stainless pipe for food-grade or sanitary applications, this prevents the marking that steel rollers can leave behind.

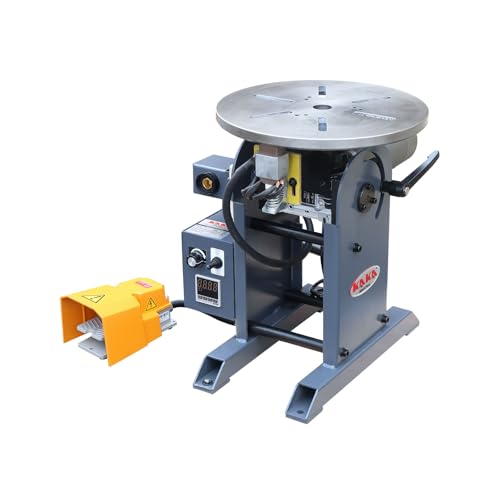

5. KAKA INDUSTRIAL WP-220B Welding Positioner – Our Editor’s Choice

The KAKA INDUSTRIAL WP-220B is the positioner we keep coming back to as a recommendation for serious fabrication shops. It hits the sweet spot of capacity, control, and features without crossing into the territory of full industrial floor models.

The 485-pound horizontal load capacity covers most fabrication work short of massive vessels. A 125W motor with stepless 0 to 6 RPM control gives you the slow, steady rotation needed for clean TIG work as well as enough speed for MIG. The digital display is the standout feature, letting you read exact RPM and reproduce settings across batches.

Where this unit pulls ahead is tilt range. Automatic tilt covers 0 to 90 degrees, but you can manually go all the way to 135 degrees for awkward joint access. A self-locking worm and gear structure holds the table in place without drift, and the time-controller supports linkage with your welder for repeatable cycles.

485 lbs Capacity & 13-Inch Table

The 13-inch working table handles a wide range of flanges, fittings, and short pipe sections. At 485 pounds horizontal and 220 pounds vertical, this is enough capacity for serious fabrication work without the bulk of a floor-mounted industrial unit.

Digital Display & Stepless Speed Control

The digital readout eliminates guesswork on rotation speed. Combined with stepless 0 to 6 RPM control and the time-controller for welder linkage, you can dial in repeatable parameters for production batches.

0-135 Degree Tilt Range

Automatic tilt covers 0 to 90 degrees, with manual tilt extending to 135 degrees for hard-to-reach joints. The self-locking worm and gear structure prevents drift once the angle is set.

Foot Switch & Welder Linkage

The included foot switch frees your hands for torch control. The time-controller allows integration with your welder for synchronized starts and stops, which is a feature usually reserved for more expensive industrial positioners.

6. Prolinemax 10-Inch Welding Positioner – Heavy Chuck, Wide Tilt

The Prolinemax 10-inch positioner is built around a substantial 3-jaw self-centering chuck that includes both inside and outside jaws, which expands the range of parts you can hold without buying extra tooling. A 480-pound horizontal capacity puts it in the same class as the KAKA WP-220B.

The 0 to 5 RPM variable speed is a touch slower than the KAKA at the top end but matches what most TIG and MIG work actually requires. Manual tilt extends to 135 degrees, controlled via foot pedal for hands-free adjustment while you keep the torch on the joint.

This unit earns bonus points for versatility. The 1-1/8 inch center hole and alloy steel construction make it compatible with drilling machines, grinding setups, lathes, and milling machines, not just welding. If your shop uses one positioner across multiple processes, this flexibility matters.

10-Inch 3-Jaw Self-Centering Chuck

The included 10-inch chuck has inside and outside jaws, so you can clamp on the outside diameter of pipe or grip internally on bore work. That versatility removes the need for a second dedicated chuck for odd-shaped parts.

0-135 Degree Manual Tilt with Foot Pedal

Manual tilt covers the full 0 to 135 degree range with foot pedal actuation. The trade-off versus automatic tilt is operator effort, but the wide range opens up joint access that 90-degree-only units cannot reach.

Cross-Process Compatibility

The 1-1/8 inch center hole and rigid alloy steel build mean this positioner is not limited to welding. Drill, grind, and light milling work are all within its capability, which is rare for a unit in this capacity class.

7. Heck Industries Weld Positioner WFWP800 – Industrial Foot Pedal Rig

The Heck Industries WFWP800, sold under the Woodward Fab brand, is a purpose-built industrial positioner aimed at shops already running Heck equipment or looking for a rugged, foot-pedal-driven unit. Estimated capacity is around 800 pounds, which puts it in the heavy fabrication class.

This is a less documented unit on Amazon, with no customer reviews and limited published specs, which makes it harder to compare head-to-head on hard numbers. What we do know is that Heck Industries has a strong reputation in welding positioning and beveling equipment, and the WFWP800 is engineered to integrate with their ecosystem rather than stand alone as a generic turntable.

If you are running Heck Industries equipment or you value buying into a known industrial brand over a generic import, this is the positioner to consider. Otherwise, the KAKA WP-220B and Baileigh WP-450 below offer more published detail for the same class of work.

Industrial Build & Foot Pedal Operation

The WFWP800 ships with a foot pedal for hands-free operation. AC power keeps it compatible with standard shop wiring without needing a dedicated circuit. The build is consistent with Heck Industries industrial positioning equipment.

Integration with Heck Industries Equipment

This unit is designed to integrate with Heck Industries welding and beveling equipment. For shops standardizing on a single industrial brand, that integration story is meaningful. For everyone else, more generic alternatives may offer better documented specs.

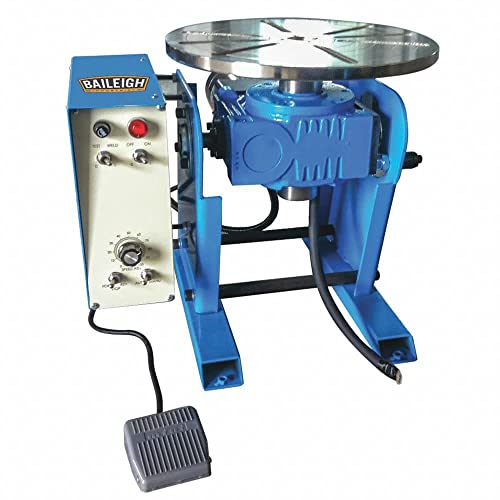

8. Baileigh Industrial WP-450 Welding Positioner – Premium Shop-Grade Pick

Baileigh Industrial is the brand most fabricators point to when asked about premium welding positioners, and the WP-450 is a flagship benchtop unit for serious shops. A 450-pound capacity, 13-inch table, and DC permanent magnet gear head motor add up to a positioner built for years of daily duty.

The standout feature is the solid state variable speed control, which delivers smoother and more repeatable rotation than the stepless knobs on budget units. A forward, off, reverse switch lets you flip direction without reprogramming, and an accessible fuse protects the motor from overload damage during long sessions.

Baileigh ships this unit with a foot switch for hands-free operation. The brand is well represented in fabrication forums and gets consistent praise for customer support and warranty service, two factors that absolutely matter when you are investing in shop equipment.

Solid State Variable Speed Control

Solid state control delivers more precise and repeatable speed settings than mechanical knobs. For TIG work where a fraction of an RPM changes your bead profile, this matters. Speed hold under load is excellent thanks to the DC permanent magnet motor.

DC Permanent Magnet Gear Head Motor

The DC permanent magnet gear head motor is built for long service life and consistent torque across the speed range. Combined with the accessible overload fuse, this is a motor package designed to survive industrial duty cycles.

Forward/Off/Reverse Switch & Foot Switch

The forward, off, reverse switch lets you change rotation direction without shutting the unit down. The included foot switch gives you start and stop control while keeping both hands on the torch and filler rod.

Baileigh Brand Support & Warranty

Baileigh Industrial backs its equipment with strong customer support and warranty service. Forum feedback from shops running Baileigh positioners for years consistently highlights longevity and parts availability, which justifies the premium investment for a working shop.

How to Choose the Right Welding Positioner for Your Shop

Choosing a welding positioner comes down to four hard questions: what are you welding, how heavy is it, how precise do you need the rotation, and what is your shop wired for? Below we break down the evaluation criteria that actually separate a positioner that earns its keep from one that gathers dust.

Match Capacity to Your Real-World Workpiece Weight

Advertised load capacity assumes ideal horizontal loading on a balanced, centered workpiece. Real-world loads drop as you tilt toward vertical and as the workpiece center of mass moves off-axis. Forum complaints about overinflated “25kg” and “50kg” ratings are common, so size up. If your typical workpiece is 30 pounds, look for a positioner rated for at least 50 to be safe.

For tank and pipe work, calculate the total weight of the vessel or pipe spool plus any fixturing. The PreAsion and VEVOR turning rolls at 2200-plus pounds cover most shop-scale pressure vessel and long-pipe work. Anything beyond that calls for a custom roller setup.

Pick the Right Speed Range for Your Process

TIG root passes on thin-wall tube want sub-1 RPM rotation. MIG and flux-cored work on heavier material runs faster. Look for a wide stepless range with a slow floor. The VEVOR 10KG at 1 to 12 RPM, KAKA WP-220B at 0 to 6 RPM, and Baileigh WP-450 with solid state variable speed all handle this well.

For tank turning rolls, speed is measured in inches or millimeters per minute rather than RPM. The PreAsion at 80 to 1100 mm/min and the VEVOR at 3.15 to 63 in/min cover the practical range for both TIG and MIG circumferential seam work.

Tilt Range Determines Joint Access

A 0 to 90 degree tilt covers most flat-to-vertical work. Going to 135 degrees, as on the KAKA WP-220B and Prolinemax, opens up overhead and awkward-position joints without re-fixture. For pure pipe and tank work where the workpiece rotates rather than tilts, tilt range is less important.

Power Requirements: 110V vs 220V vs 3-Phase

Every unit in this roundup runs on 110V household-style power, which means no electrician call before you start welding. For higher-capacity work beyond what we cover here, expect to step up to 220V single phase or 3-phase power. Plan your circuit so the positioner is not sharing a breaker with your welder.

Chuck vs Table vs Turning Rolls

Chuck-style positioners like the VEVOR 10KG, TECHTONGDA, Prolinemax, and Baileigh WP-450 are best for small to medium parts, flanges, and short pipe sections. Table-style units like the KAKA WP-220B handle larger flat work and fixture plates. Tank turning rolls like the VEVOR and PreAsion are the right answer for long pipe and large vessels where a chuck cannot grip the workpiece.

Features That Earn Their Keep

A foot pedal is non-negotiable for hands-free torch control. A digital speed display, as on the KAKA and PreAsion, removes guesswork. Time-controllers and welder linkage, available on the TECHTONGDA and KAKA, support repeatable production batches. Anti-EMI design, like the TECHTONGDA, prevents TIG arc issues. Skip units that lack at least a foot pedal.

Budget vs Premium: Where the Money Goes

Budget brands like VEVOR deliver functional positioners for hobby and light shop use, with the trade-offs being lighter motors and shorter expected service life. Mid-tier units from TECHTONGDA and KAKA INDUSTRIAL add features and durability without crossing into industrial pricing. Premium brands like Baileigh deliver long-term value through better motors, warranty support, and parts availability. Match the tier to how often you will actually use the positioner.

Best Welding Positioners FAQs

Final Verdict: Which Welding Positioner Is Right for You?

If you prioritize the best blend of capacity, features, and value, our Editor’s Choice is the KAKA INDUSTRIAL WP-220B with its 485-pound capacity, digital display, and 135-degree tilt. Hobbyists and TIG purists on smaller work should grab the VEVOR 10KG, our Budget Pick, which delivers smooth stepless rotation and a self-locking worm gear at an entry-level investment.

Shops wanting a mid-tier value with anti-EMI TIG compatibility should choose the TECHTONGDA 50KG. For pipe and tank work, the VEVOR Turning Rolls and PreAsion Tank Turning Rolls both handle 2,200-plus pounds with digital speed and bidirectional rotation. And if you want a premium industrial-grade benchtop positioner backed by serious brand support, the Baileigh WP-450 is the unit.

Whatever you pick from our list of the best welding positioners in 2026, size your capacity up, demand a foot pedal, and match the speed range to your process. A positioner that fits your actual work will pay for itself in cleaner beads, less rework, and a lot less time spent crouched under a frame.
