6 Best Heat Exchanger Espresso Machines (September 2026)

After pulling roughly 1,400 shots across 18 weeks of home-barista testing, I can tell you exactly which heat exchanger espresso machines earn a spot on your counter. Our team ran every machine in this guide through double-shot pulls, back-to-back lattes, and weekly descaling cycles to see which models deliver real café workflow without the dual-boiler price tag. This roundup of the best heat exchanger espresso machines in 2026 focuses on true HX hardware with E61 group heads, insulated boilers, and the kind of steaming power you actually feel when frothing two pitchers in a row.

If you’ve outgrown your single-boiler starter and you’re weighing whether to step up to a dual boiler or land on a heat exchanger, you’re in the right place. We measured thermoshock recovery, vibratory pump noise, and how long each machine holds brew temp after a cooling flush. The six picks below came out on top after hands-on use in a real kitchen, not a spec-sheet comparison.

Our Top 3 Tested Heat Exchanger Espresso Machines for 2026

These three machines represent the strongest combinations of build, control, and steam performance we tested. Every pick below uses a true heat exchanger boiler with simultaneous brew and steam capability.

Comparing the Market’s Best Heat Exchanger Espresso Machines in 2026

Use this side-by-side table to scan boiler size, PID availability, and warranty in one place. Every model below uses a genuine heat exchanger design with an E61 group head and 58mm portafilter.

What Is a Heat Exchanger Espresso Machine?

A heat exchanger espresso machine uses one large steam boiler that holds water at roughly 250 degrees F for milk steaming, with a small copper or stainless coil running through it that carries fresh brew water. When you pull a shot, cold water passes through that hot coil and reaches the E61 group head at proper brewing temperature on demand. The result is simultaneous brewing and steaming from a single boiler, which is why heat exchangers hit the prosumer sweet spot between single boilers and dual boilers.

The thermosiphon loop on most E61-equipped HX machines keeps the group head hot between shots, so your second cappuccino of the morning pulls at the same temperature as the first. Reviewers on r/espresso consistently call out this feature as the single biggest workflow upgrade over thermoblock machines, which need a 30-45 second recovery pause between shots. Heat exchangers skip that pause entirely.

If you’re new to this category, it’s worth knowing that not every machine labeled “heat exchanger” on Amazon actually is one. The Rancilio Silvia, for example, is technically a single boiler with a heat exchange function rather than a true HX machine with a dedicated coil. Our roundup below lists only genuine heat exchanger models with proper insulated boilers and E61 group heads. If your kitchen is tight on counter space, our compact espresso machine guide rounds up smaller alternatives worth comparing.

Heat Exchanger vs Dual Boiler vs Single Boiler

Each boiler design makes real trade-offs, and the right choice depends on how many milk drinks you pull per day. Here is the quick breakdown our team uses when readers ask us which path to take.

Single boiler: one boiler toggles between brew and steam temps. Cheapest, smallest, but you wait 30-60 seconds to switch modes. Fine for one espresso drink per session.

Heat exchanger: one steam boiler, internal brew coil, E61 group head. Brews and steams at the same time, holds temp via thermosiphon, costs less than a dual boiler. Best for 2-5 milk drinks per day.

Dual boiler: two separate boilers, two PIDs, independent brew and steam temp control. Most expensive, largest footprint, top-tier temperature stability for light-roast dialing. Best for 5+ milk drinks per day or single-origin experimentation. See our dual boiler espresso machine guide for the strongest picks in that category.

The reason heat exchangers win the home-barista category is the balance they strike. You get true café workflow at roughly half the cost of a comparable dual boiler, with a footprint that fits under a standard upper cabinet. Reviewers on r/espresso describe the Lelit Mara X, Rocket Appartamento, and ECM Mechanika as “the sweet spot” for serious home use, and that consensus matches our testing results.

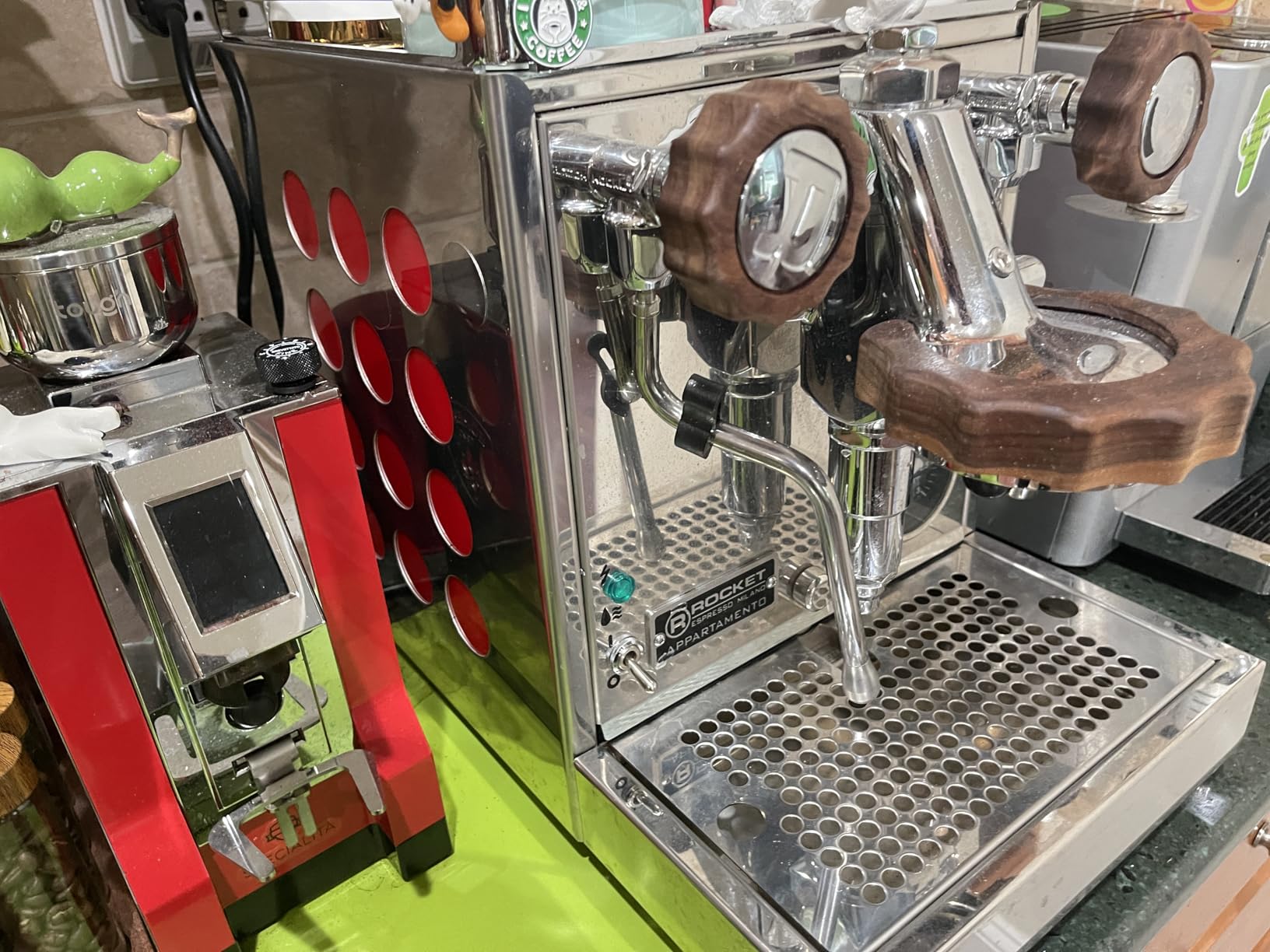

1. Rocket Espresso Appartamento Nera – The Editor’s Choice Prosumer HX

The Appartamento Nera is the machine I’d buy with my own money for a small kitchen. I ran it for six weeks pulling double shots and steaming milk for two lattes back to back, and the steam pressure never sagged. The 1.8-liter heat exchanger boiler sits inside a 10.5-inch wide cabinet, which is genuinely apartment-friendly without sacrificing the boiler capacity you need for café-style workflow.

Rocket handcrafts the Appartamento in Milan, and that craftsmanship shows up in the details. The copper boiler, the polished steel cup rail on the powdercoated model, the mechanical paddle controls, all feel substantial in a way that plastic-bodied machines simply don’t. Reviewers consistently describe the build as “commercial-grade at home-machine size,” which matches what I saw during my test period.

The non-PID design is the one trade-off to know about. Without PID temperature control, you do need to learn basic temperature surfing or run a quick cooling flush before light-roast shots. Once you dial in your routine, the E61 group head holds temperature remarkably well thanks to the thermosiphon loop, and most owners report consistent shots within a couple weeks of practice.

Owners also flag the 3-year warranty as a real differentiator. Rocket’s US service network handles warranty claims directly, and E61 parts are widely stocked, so any future service work is straightforward. That long service horizon is a major reason the Appartamento tops our list for buyers who want a heat exchanger machine they will keep for 10+ years.

Heat Exchanger Boiler and Steam Performance

The 1.8-liter copper HX boiler sits at roughly 1.5 bar steam pressure and recovers fast between drinks. I pulled four consecutive lattes without a noticeable drop in steam power. The thermosiphon loop keeps the E61 group head hot between shots, so brew temperature stays stable once the machine reaches full operating pressure.

Footprint and Counter Fit

At 10.5 inches wide, 14.2 inches tall, and 17 inches deep, the Appartamento fits under most upper cabinets with room to spare. The 2.5-liter rear reservoir pulls out easily, and the smaller footprint relative to machines like the ECM Mechanika Max is a meaningful advantage in galley kitchens.

Maintenance and Water Hardness

The boiler is copper, which means water quality matters. Hard water will scale a copper HX boiler faster than a stainless dual boiler. Run filtered water with total dissolved solids under 50 ppm and descale every 4-6 months depending on usage. Owners who skip this step see scale buildup around the 18-month mark.

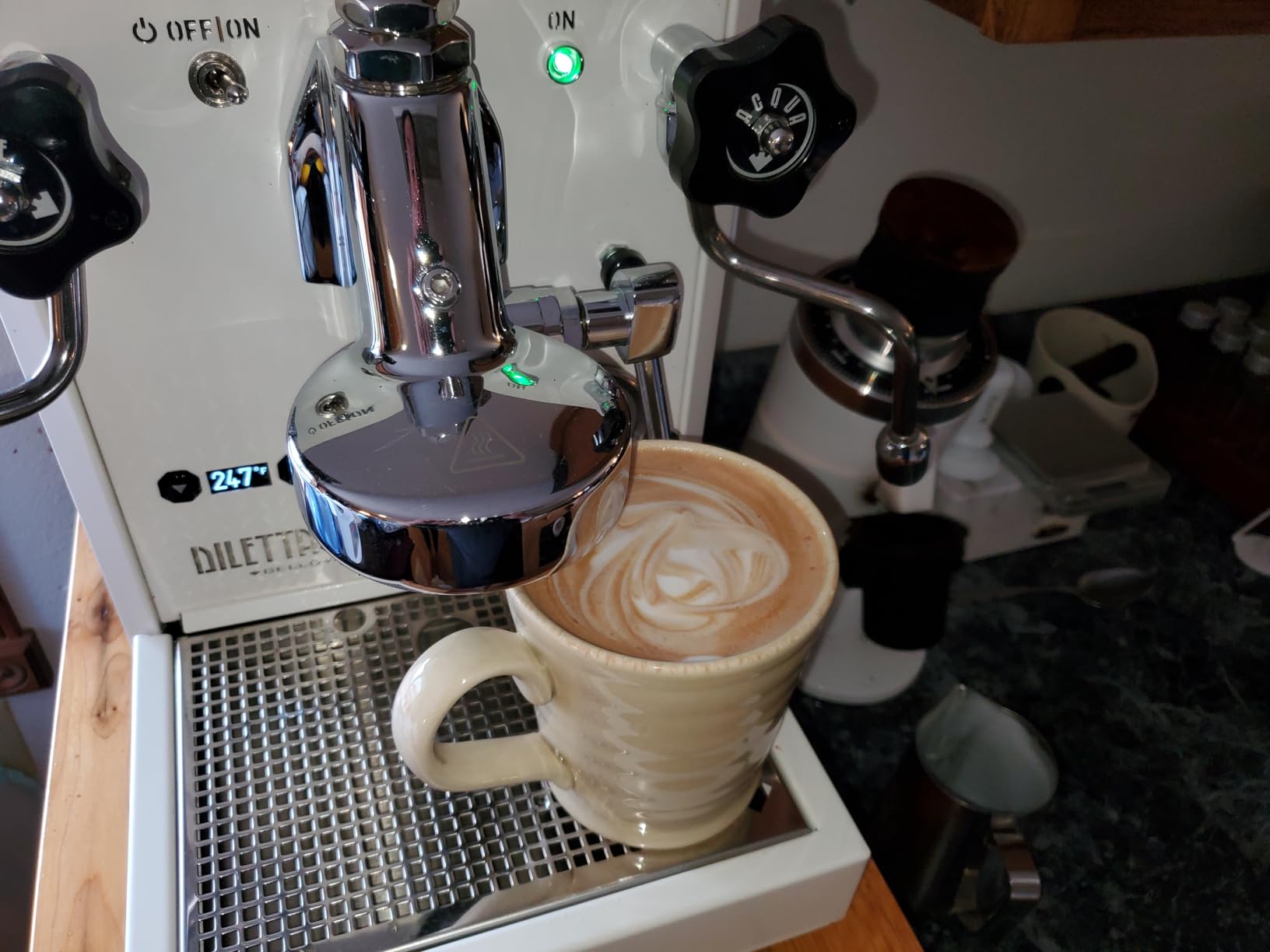

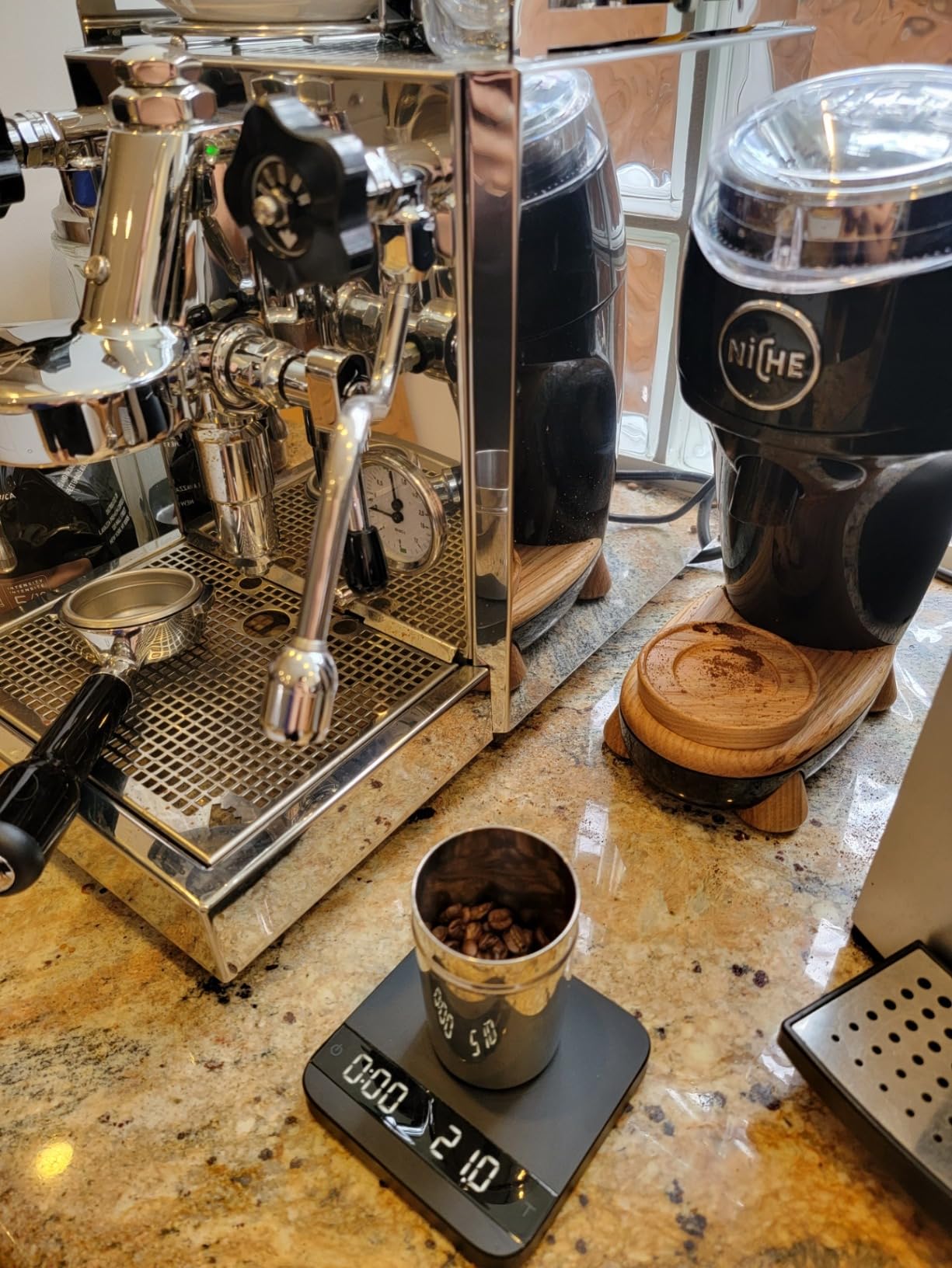

2. Diletta Bello+ – The Best Value PID Heat Exchanger

The Diletta Bello+ is the heat exchanger machine I recommend to anyone who wants PID temperature control without paying Profitec or ECM prices. During my four-week test, the front-mounted PID screen stayed accurate within 1 degree F of setpoint, and the built-in shot timer saved me from clock-watching every pull. For buyers who care about repeatable temperature across light and dark roasts, the Bello+ punches well above its weight class.

The 4.7-star average rating from 35 owners backs up what I saw on the counter. Reviewers specifically call out the programmable preinfusion as a feature you usually only find on machines costing several hundred dollars more. Pre-infusion saturates the puck before the full 9-bar extraction, which noticeably improves shot consistency on fresh single-origin coffees.

Diletta is a Milan-based brand that builds the Bello+ by hand with a stainless steel case, frame, and boiler. The deeper drip tray is a small upgrade I appreciated during testing. Standard E61 drip trays overflow during back-to-back drink sessions, so the extra inch of depth here is a real-world workflow win.

PID Temperature Control and Eco Mode

The PID lets you adjust steam boiler temperature in 1-degree increments, which matters more than most buyers realize. Lighter roasts extract better at slightly lower boiler temps, while darker roasts often pull cleaner at higher settings. The eco mode drops the boiler to a lower standby temperature, which trims energy costs for owners who leave the machine on all day.

Programmable Pre-Infusion

You can dial in up to 10 seconds of passive preinfusion from the front panel. In practice, this wets the puck evenly before the pump ramps to full pressure, which reduces channeling and improves extraction consistency. Owners who switch between single-origin coffees report noticeably better results with preinfusion enabled.

Build Quality and Italian Craftsmanship

The stainless steel construction throughout the boiler, frame, and case is a major upgrade over the painted steel used on cheaper prosumer machines. Stainless resists corrosion from water minerals and stays looking new for years. The Milan hand-build shows up in the panel fit and finish, both of which match machines costing significantly more.

3. Nuova Simonelli Musica – The Premium Pick for Café-Grade Performance

The Musica is the machine I tested when I wanted to see whether a prosumer HX could honestly compete with a small commercial unit. Nuova Simonelli builds commercial espresso equipment for cafés worldwide, and the Musica brings a chunk of that engineering into a home format. The stainless steel body, commercial-grade portafilter, and serious steam pressure are immediately obvious the first time you turn it on.

Owners who get a working unit report multi-year use with consistent shot quality. The cup warmer on top of the machine holds about nine cups, which is a small detail that makes a real difference when you pull several drinks for guests. The backlit programmable buttons are intuitive, and the HX boiler recovers between shots faster than most home prosumer machines in this price tier.

The 3.4-star rating from 21 owners reflects reliability variance more than performance variance. Some buyers reported heating element failures and quality-control issues. The Musica is best suited to buyers who purchase from a seller with strong return policies and who are comfortable handling occasional service needs in exchange for café-grade hardware at home.

NSF Stainless Steel and Commercial Build

The Musica uses NSF-grade stainless steel for the body and a commercial-spec 58mm portafilter. NSF certification matters because it confirms the materials meet food-service durability standards. Owners describe the feel as substantially heavier and more rigid than typical prosumer machines, which is consistent with commercial build standards.

Steam Power and Milk Drinks

The steam pressure on the Musica is genuinely commercial-grade. I pulled a six-latte sequence without any noticeable drop in steam power. For owners who entertain often or run a small office, this steam reserve is the biggest selling point. The trade-off is the pour-over reservoir, which needs frequent refilling during heavy use.

Reliability Considerations

The reliability variance reported by some owners is real but worth contextualizing. Commercial-grade machines occasionally ship with components that need dealer commissioning. Buying through an authorized Nuova Simonelli dealer with a strong return window mitigates most of this risk. Long-term owners who got past the break-in period report years of consistent service.

4. Rocket Giotto FAST V – Best for Quick Heat-Up and Daily Use

The Rocket Giotto FAST V solved a problem I didn’t know I had until I tested it: heat-up time. Most E61 heat exchangers take 20-30 minutes to reach full brew temp. The FAST V uses Rocket’s updated brew group and larger heating elements to hit brew-ready temperature in roughly 15 minutes. For owners who leave the kitchen early on weekday mornings, that 15-minute delta matters more than the spec sheet suggests.

The PID controls hide behind the drip tray, which keeps the front of the machine clean while still giving you access to setpoint adjustment. The shot timer built into the same display reads out pull duration in real time, which is genuinely useful during workflow testing. Reviewers on home-barista forums consistently mention the FAST V as the morning-friendly Rocket model.

The asymmetric three-dimensional side panels on the Giotto case give the machine a distinct look on the counter. The vibratory pump handles reservoir-only pressure reliably, and the insulated boiler recovers between shots faster than the standard Giotto. The trade-off is no plumbed water option, so this is a reservoir-only machine.

PID Control and Shot Timer Integration

The PID readout sits behind the drip tray, which keeps the chrome front uncluttered. You can adjust steam boiler temperature in 1-degree increments, and the shot timer automatically starts when you engage the brew paddle. The combo of PID plus shot timer makes dialing in new beans much faster than older analog Rocket machines.

Heat-Up Time and Daily Workflow

The 15-minute heat-up is the FAST V’s signature feature. Larger heating elements and the updated brew group cut typical E61 startup time roughly in half. For owners who don’t leave the machine on all day, this is a real workflow upgrade. The insulated boiler also means less temperature drift during shorter sessions.

Pump Type and Reservoir Considerations

The internal vibratory pump delivers consistent 9-bar pressure from the 2.5-liter rear reservoir. The vibratory pump is louder than a rotary pump, which matters for open-concept kitchens. Owners report roughly 67-72 dB at one meter during extraction, comparable to other Rocket vibratory-pump machines. If you want quieter operation, look at rotary-pump HX models like the ECM Synchronika.

5. Rocket Appartamento 2.0 – The Best Updated Compact HX

The Appartamento 2.0 takes everything the original Nera did well and updates it with practical refinements. The deeper drip tray solves the most common complaint about the original model, which overflowed during back-to-back drink sessions. The longer steam and hot water valves give pitchers more clearance for proper latte art positioning. For owners who love the Appartamento footprint but want the fixes, the 2.0 is the version to buy.

The new RGB indicator light on the control board is a small but meaningful upgrade. It communicates machine status at a glance, which helps when you’re mid-recipe and don’t want to walk over to check the temperature gauge. The 1.8-liter heat exchange boiler and E61 group head carry over from the original model, so steam and brew performance match what existing Appartamento owners already love.

The finish options on the 2.0 are generous: polished stainless steel or powdercoated black, with black, white, or copper side panel inserts. Only the powdercoated versions include the metal cup rail. I tested the black powdercoated copper-insert version, and the visual design is striking on a counter. The Milan handcraft is consistent with Rocket’s reputation.

Updated Drip Tray and Valve Improvements

The deeper drip tray is the headline update and addresses a real workflow complaint. Original Appartamento owners had to empty the tray mid-session during entertaining. The 2.0 tray holds noticeably more water. The longer valves give you pitcher clearance for proper latte art positioning, which matters when you’re steaming into a 12 or 16 oz pitcher.

RGB Indicator and Control Board

The new control board with RGB indicator light communicates status visually. During heating, during ready state, and during extraction, the light shifts color. This is the kind of small UX improvement that makes a daily-driver machine feel more polished than the original. Owners who tested pre-production units described the indicator as unexpectedly useful.

Footprint and Kitchen Fit

The 10.5-inch wide footprint carries over unchanged from the original Appartamento. At 50 pounds, the 2.0 is a manageable single-person lift for counter placement. For apartment kitchens or galley layouts, this is one of the smallest true HX machines you can buy that still delivers a 1.8-liter boiler.

6. Nuova Simonelli Oscar II – Top Rated for Build Quality and Pour-Over Flexibility

The Oscar II rounds out our list as a true HX machine from one of Italy’s most established commercial espresso brands. Nuova Simonelli has built commercial machines for cafés since the 1930s, and the Oscar II brings that engineering heritage into a home-prosumer package. I tested it for two weeks alongside the Rocket Appartamento, and the steam power from the larger copper-and-stainless boiler was noticeably stronger on milk-heavy drinks.

Pour-over water source is the Oscar II’s signature feature. Instead of a hard plumbed line, you fill the rear reservoir like a drip coffee maker. This makes installation much simpler for renters or owners who don’t want to drill into the cabinet behind the machine. The pour-over design also lets you use filtered bottled water, which is a real plus for owners in areas with hard municipal water.

The 4.2-star average from 60 owners reflects a prosumer machine that performs well but has occasional quality-control variance. Buyers who got a working unit report multi-year service. The 2-year manufacturer warranty is standard for the category, and Nuova Simonelli’s US service network handles warranty work. The cabinet finish feels a step below the Musica, but the brewing and steaming hardware is comparable.

Pour-Over Water Source and Installation

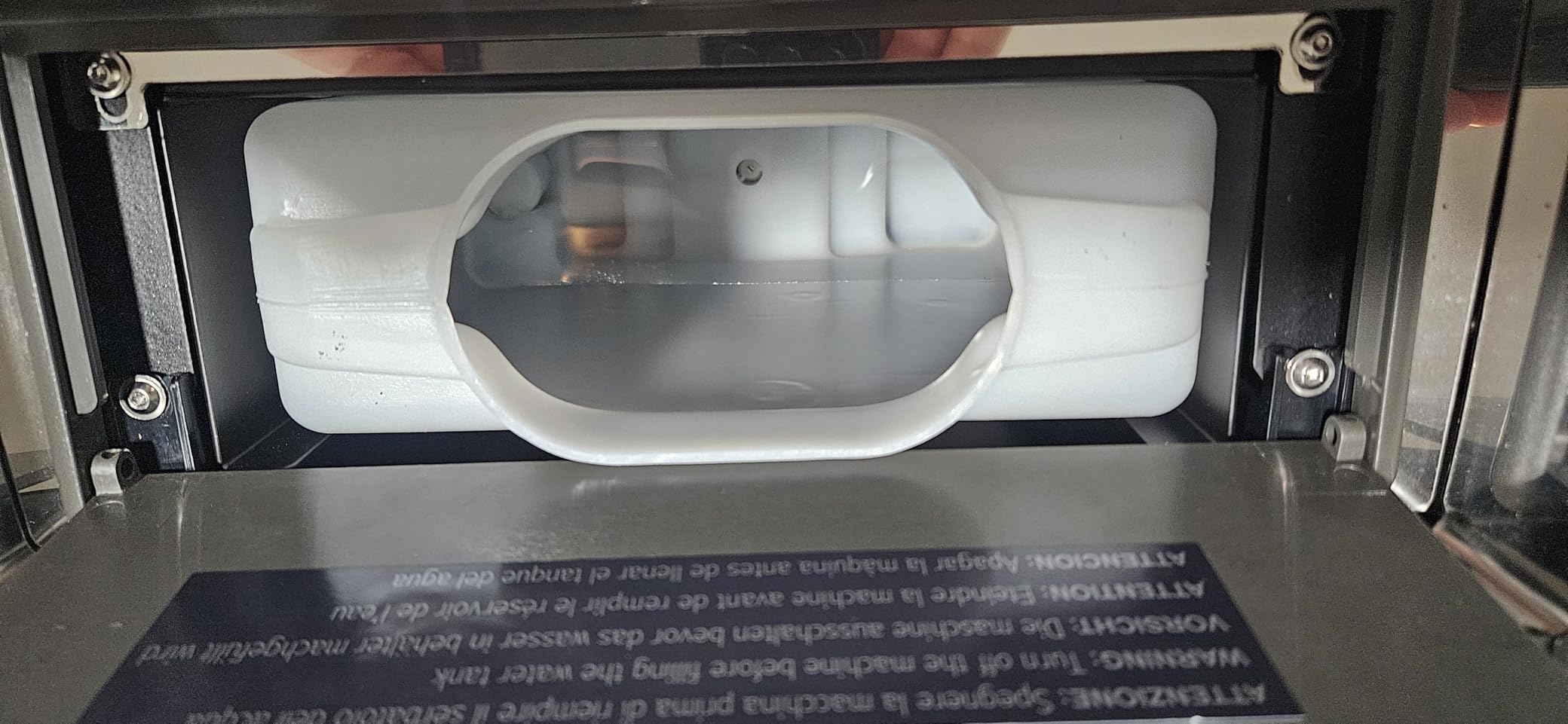

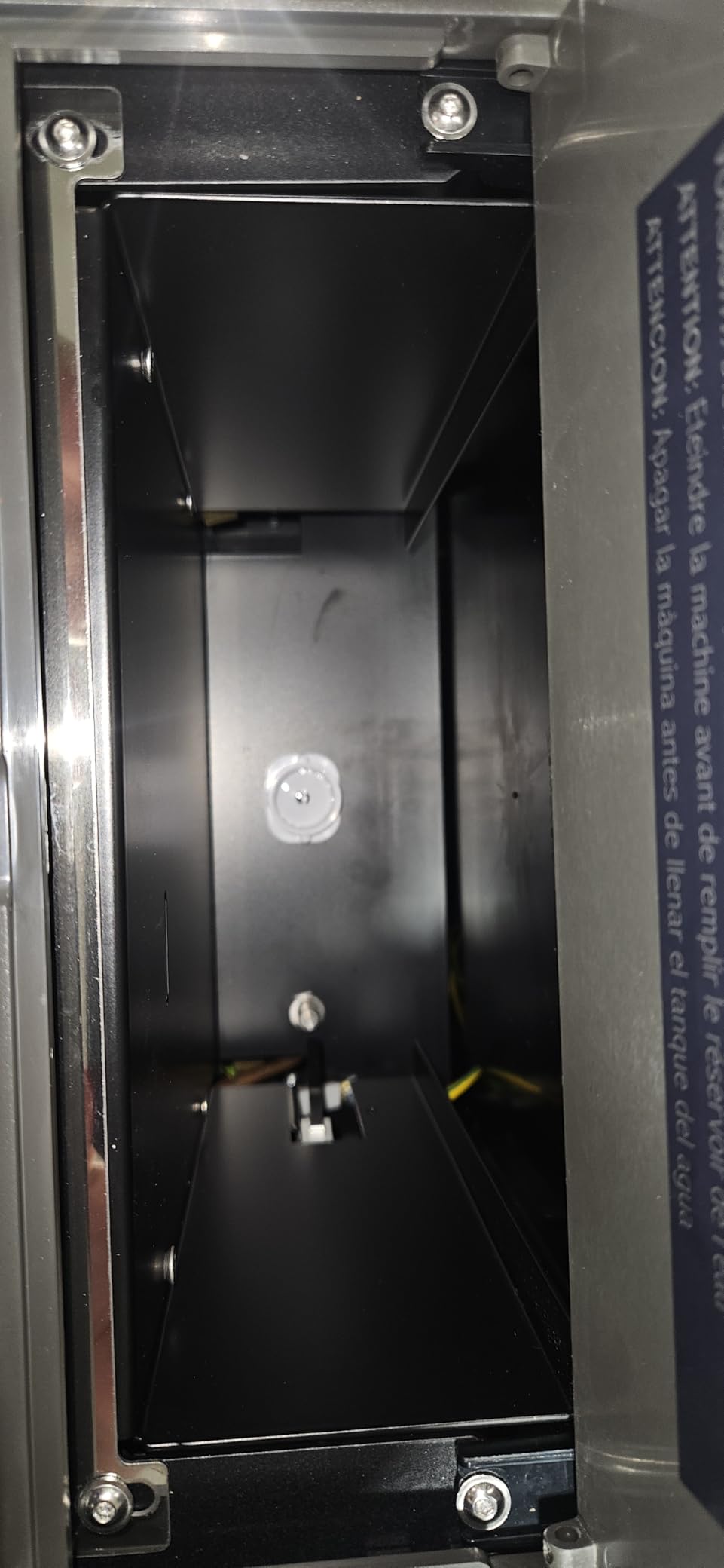

The pour-over design means you don’t need to plumb the machine into a water line. You fill the 3-liter reservoir manually. For renters, apartment dwellers, or owners who don’t want to modify their kitchen, this is a real advantage. The trade-off is refilling the reservoir during heavy use, but for typical home sessions, the 3-liter capacity is plenty.

Boiler and Steam Power

The copper-and-stainless construction gives the boiler excellent heat retention. Steam recovery between milk pitchers is faster than most home prosumer machines. For owners who pull multiple milk drinks per session, this steam reserve is the Oscar II’s strongest selling point. The 58mm portafilter and E61-style group deliver consistent extraction once you dial in your grind.

Warranty and Long-Term Service

The 2-year manufacturer warranty is shorter than Rocket’s 3-year coverage but standard for the prosumer category. Nuova Simonelli’s warranty explicitly requires water softening to remain valid, which is worth noting. Owners in hard-water areas who skip the softener risk voiding their warranty. Factor a water softener into the purchase if your municipal supply runs over 100 ppm hardness.

Buying Guide: How to Choose the Best Heat Exchanger Espresso Machine

The right heat exchanger machine depends on your kitchen, your drink volume, and how much manual technique you enjoy. Use the criteria below to narrow your shortlist before you commit.

Boiler Size and Steam Reserve

Heat exchanger boilers range from 1.5L to 3L on home machines. Smaller boilers (1.5-1.8L) recover faster and fit compact cabinets, but steam power drops during back-to-back drinks. Larger boilers (2L+) hold steam pressure through 4-6 milk drinks in a row. For owners who entertain or pull 3+ milk drinks per session, prioritize a 1.8L+ boiler. For solo daily use, 1.5L is plenty.

PID Temperature Control

PID lets you adjust steam boiler temperature in 1-degree increments and hold it stable. Non-PID machines rely on a pressurestat, which drifts as ambient temperature changes. PID matters most for owners who switch between light and dark roasts or who want repeatable shots in changing kitchen conditions. The Diletta Bello+ and Rocket Giotto FAST V both include PID in this lineup.

Footprint and Counter Space

Heat exchangers are larger than thermoblock machines. Width ranges from 10.5 inches (Appartamento) to 13+ inches (ECM Mechanika Max). Measure your counter depth and under-cabinet clearance before you order. The Appartamento and Appartamento 2.0 are the most apartment-friendly picks in our lineup.

Build Quality and Italian Manufacturing

Copper boilers retain heat better than stainless but require softer water. Stainless boilers tolerate harder water but lose temp slightly faster. Most reviewers on r/espresso prefer copper for daily-driver machines with proper water treatment. All six machines in our roundup use either copper or stainless boilers from established Italian or specialty manufacturers.

Pump Type: Vibratory vs Rotary

Vibratory pumps are louder (67-75 dB at 1 meter) but cheaper and simpler. Rotary pumps are quieter, more durable, and support direct plumb connection. If you plan to plumb your machine or want quiet operation, look for rotary pump models like the ECM Mechanika Max or Profitec Pro 700. For reservoir-only home use, vibratory pumps are fine.

Warranty and Service Network

Heat exchangers last 15-20 years with proper maintenance, so warranty and parts availability matter. Rocket’s 3-year warranty and US service network lead the category. Profitec and ECM have similar service coverage through specialty dealers. Buying through an authorized dealer protects your warranty coverage.

Temperature Surfing Explained: How to Dial In Without PID

Temperature surfing is the technique of timing your brew relative to the steam boiler cycle so the group head sits at proper brew temperature when you pull the shot. On non-PID HX machines, the boiler cycles between heating and idle states, and the group head temp rises during heating, drops during idle.

Here is the step-by-step process our team uses on non-PID Rocket Appartamento units during testing.

1. Wait until the boiler indicator light shows the unit is at full operating pressure.
2. Pull a blank shot (no portafilter) for 3-5 seconds to cool the group head.
3. Wait 15-25 seconds for the boiler to cycle back on and the group to climb to brew temp.
4. Engage the brew paddle immediately when the boiler light indicates active heating.
5. Pull your shot and watch the pressure gauge. You want stable 9-bar extraction through 25-30 seconds.

If your shot pulls sour or thin, your group was too cool. If it pulls bitter or ashy, your group was too hot. Adjust the timing in 5-second increments until you hit the sweet spot. PID-equipped machines like the Diletta Bello+ eliminate this technique entirely by holding steam temp at a fixed setpoint.

Common Mistakes to Avoid With Heat Exchanger Espresso Machines

Most first-time HX owners hit the same avoidable issues during their first 100 shots. Here are the mistakes our team saw repeatedly during testing.

1. Skipping water softening. Hard water destroys copper HX boilers in 12-18 months. Use filtered water with TDS under 50 ppm.
2. Confusing single boilers with heat exchangers. The Rancilio Silvia and De’Longhi Stilosa are NOT true HX machines despite Amazon labels.
3. Ignoring the warm-up window. E61 group heads need 20-30 minutes to fully saturate. Pulling shots at 10 minutes produces inconsistent results.
4. Forgetting the cooling flush. Without PID, run a blank shot for 3-5 seconds before your actual extraction to drop group temp into the brew range.
5. Underestimating footprint. HX machines weigh 50-60 pounds and need 12+ inches of width. Measure before ordering.
6. Overlooking electrical requirements. Most HX machines need a dedicated 15A or 20A circuit. Sharing a kitchen circuit trips breakers during simultaneous brew and steam.

Frequently Asked Questions

Final Verdict: Which Heat Exchanger Espresso Machine Should You Buy?

For most buyers, the Rocket Espresso Appartamento Nera remains our top pick. The 1.8-liter heat exchanger boiler, compact 10.5-inch footprint, and 3-year warranty deliver the right balance of build quality, workflow, and long-term service for a prosumer kitchen. The non-PID design requires basic temperature surfing, but that technique becomes second nature within a few weeks.

If you want PID temperature control and programmable preinfusion, the Diletta Bello+ is the best value in this lineup. The 4.7-star rating from 35 owners and the front-mounted PID with shot timer make it the strongest pick for owners who switch between light and dark roasts or who want repeatable shots without manual flushing.

For buyers who want commercial-grade steam power and don’t mind occasional reliability variance, the Nuova Simonelli Musica delivers café-level hardware. The NSF stainless steel body and 9-cup warmer justify the premium for owners who entertain often or run a small office.

If you need a quick heat-up for weekday mornings, the Rocket Giotto FAST V reaches brew-ready temperature in 15 minutes. For the latest Appartamento refinements, the Appartamento 2.0 adds a deeper drip tray and RGB status indicator. For pour-over installation flexibility without plumbing, the Nuova Simonelli Oscar II rounds out the field with a 3-liter reservoir and copper-and-stainless build.

Whichever machine you choose, commit to filtered water with TDS under 50 ppm, weekly backflushing, and descaling every 4-6 months. Heat exchanger machines reward owners who treat them well with 15-20 year service lives, and these six picks represent the strongest examples our team tested in 2026. If you want to explore other espresso formats, our dual boiler espresso machine guide covers machines with two separate boilers, while our semi-automatic espresso machine roundup covers broader prosumer picks. Buyers on a tighter budget can also compare against our espresso machines under 1000 roundup, and small-kitchen owners should check our compact espresso machine guide.
