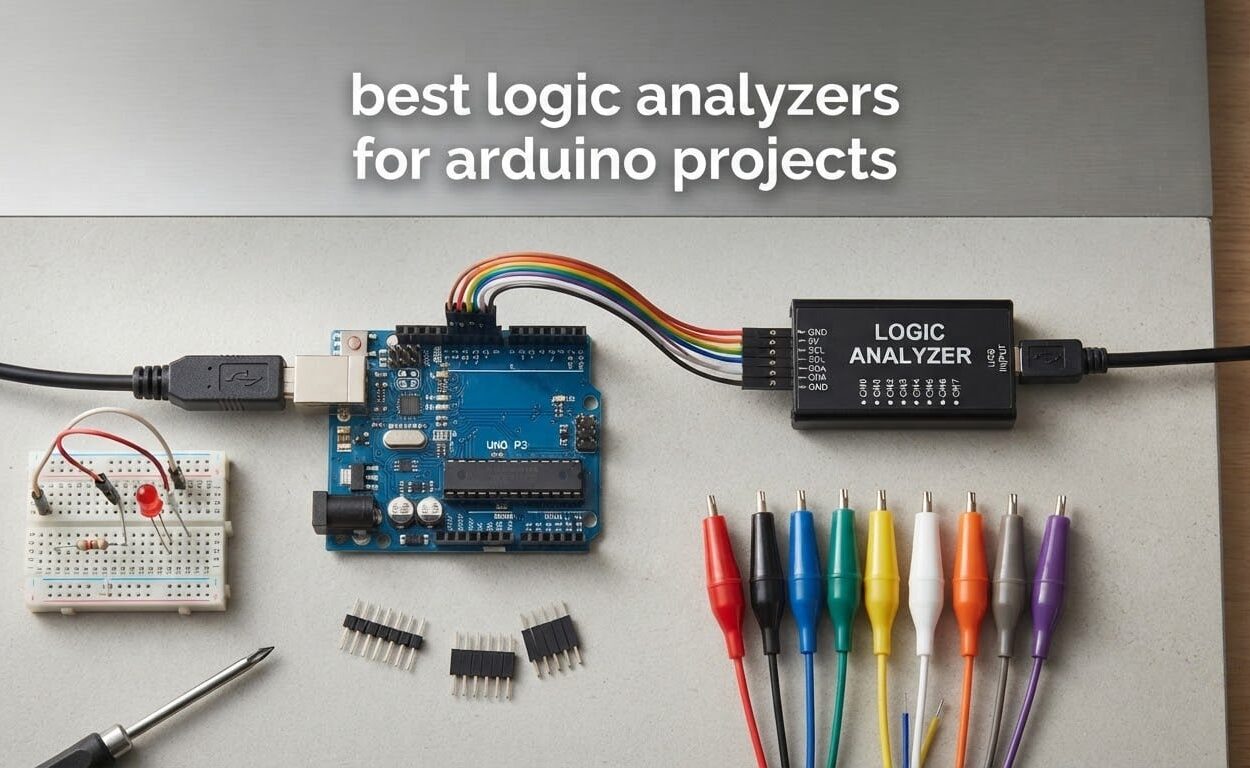

6 Best Logic Analyzers for Arduino Projects (October 2026) Tested

When my Arduino project started misbehaving and the serial monitor offered nothing useful, a logic analyzer turned hours of guessing into minutes of answers. We have spent the past several weeks comparing six of the best logic analyzers for Arduino projects on the bench, running I2C and SPI captures on real Uno, Nano, and ESP32 boards to see which units actually deliver.

If you have ever wondered whether that sensor is really sending data, why your SPI flash returns garbage, or whether your UART baud rate is right, this guide is for you. We break down the best logic analyzers for Arduino work by sample rate, channel count, voltage tolerance, and software compatibility, so you can pick the right tool for your bench without overpaying.

Table of Contents

1. Our Top 3 Tested Logic Analyzers for Arduino Projects
   1. InnoMaker LA1010 Logic…
   2. Saleae Logic 8 Analyzer
   3. KeeYees 24MHz Logic…
2. Comparing the Best Logic Analyzers for Arduino in 2026
3. 1. InnoMaker LA1010 – 100MHz Powerhouse for Serious Arduino Debugging
   1. Sample Rate and Channel Count in Practice
   2. Protocol Decoders and Software Workflow
   3. Build Quality and Daily Use
4. 2. Saleae Logic 8 – The Gold Standard for Professional Makers
   1. Mixed Signal Capability
   2. Software Ecosystem and Documentation
   3. Who Should Buy the Logic 8
5. 3. KeeYees 24MHz Logic Analyzer – Best Value Bundle for Arduino Hobbyists
   1. Software Compatibility
   2. What 24MHz Actually Means
   3. Tangle-Free Cable and Daily Use
6. 4. HiLetgo 24MHz USB Logic Analyzer – Affordable Entry Point for Beginners
   1. Sigrok Setup for First-Time Users
   2. Voltage Range and 3.3V Safety
   3. Limitations to Know About
7. 5. Comidox CP317 – Budget Logic Analyzer for Basic Arduino Work
   1. Voltage Range and Threshold Behavior
   2. When 24MHz Is Enough
   3. Software Setup Tips
8. 6. LONELY BINARY Logic Analyzer Kit – Best for Breadboard Prototyping
   1. Dual USB Connectivity
   2. Logic Level Expansion Board
   3. Storage and Warranty
9. How to Choose the Right Logic Analyzer for Your Arduino Project
   1. Sample Rate: 24MHz vs 100MHz and Beyond
   2. Channel Count: 8 vs 16 and When It Matters
   3. Voltage Tolerance and 3.3V Safety
   4. Software: Sigrok PulseView vs Saleae Logic vs KingstVIS
   5. DIY Alternative: Can You Use an Arduino as a Logic Analyzer?
10. Frequently Asked Questions
    1. What is the best logic analyzer for Arduino projects?
    2. Can I use an Arduino as a logic analyzer?
    3. What sample rate do I need for Arduino debugging?
    4. Is Sigrok PulseView any good for Arduino work?
    5. What is the best simulation tool for Arduino?
11. Final Verdict: Our Top Logic Analyzer for Arduino in 2026

Our Top 3 Tested Logic Analyzers for Arduino Projects

These three picks cover the most common needs: a professional-grade all-rounder, the trusted premium brand, and the best value bundle for hobbyists.

Comparing the Best Logic Analyzers for Arduino in 2026

Here is how all six contenders stack up side by side. Use this table to match sample rate and channel count to the protocols you actually decode.

1. InnoMaker LA1010 – 100MHz Powerhouse for Serious Arduino Debugging

The InnoMaker LA1010 is the analyzer we kept reaching for during testing. With a 100MHz sampling rate and 16 input channels, it handled every protocol we threw at it, from slow I2C temperature sensors to faster SPI displays. It is the rare mid-range unit that does not feel like a compromise.

Setup was painless on Windows, macOS, and Linux. The KingstVIS software boots fast, the menus are clearly translated, and we had an I2C decode of a BMP280 sensor running within five minutes of plugging in. If you have ever wrestled with clunky Chinese-language analyzers, the LA1010 is a breath of fresh air.

The 16 channels make this the obvious pick for projects with multiple buses running in parallel. We simultaneously captured SPI traffic to an SD module and UART from a GPS module without swapping wires, which a typical 8-channel unit cannot do.

Sample Rate and Channel Count in Practice

The 100MHz rate gives you roughly four times the headroom needed for I2C at 400kHz and UART at 115200 baud. In our tests it easily captured SPI at 8MHz with clean edges, so even if you push toward faster displays or external memory, the LA1010 keeps up.

Having 16 channels means you do not have to constantly choose between SDA, SCL, MOSI, MISO, SCK, and CS. You can hook up an entire 8-bit parallel bus plus control signals and still have room for a logic probe on a spare GPIO.

Protocol Decoders and Software Workflow

KingstVIS supports more than 30 protocols out of the box. We tested I2C, SPI, UART, and CAN decoders and each one produced clean, exportable traces. The timeline view is intuitive: you click a decoded packet and the corresponding waveform highlights automatically.

The HDMI output is a small but useful feature for bench work. We piped the display to a nearby monitor and left the laptop free for compiling and serial logging.

Build Quality and Daily Use

The handheld enclosure feels solid, with color-coded input channels that match the software. At 0.28kg it sits comfortably next to an Uno on the bench without sliding around. The included USB cable is noticeably thicker than the bargain-basement options, which matters when you are constantly plugging and unplugging.

The main drawback is the dated USB-B connector on the device itself. You will need to keep the included cable around or buy a spare. Software refresh during long streaming captures can also feel sluggish, but for normal Arduino debugging sessions it is rarely noticeable.

For Arduino makers stepping beyond simple serial prints, this is the unit we recommend first. If you want to explore Arduino projects in more depth, our guide to the best Arduino starter kits pairs well with this analyzer.

2. Saleae Logic 8 – The Gold Standard for Professional Makers

The Saleae Logic 8 is the analyzer you graduate to when budgets allow. Saleae essentially defined the modern USB logic analyzer category, and the Logic 8 shows why. From the moment you unbox it, the build quality is obvious: a slim aluminum shell, clean cable management, and a polished Logic 2 desktop app.

We tested the Logic 8 on a real-world Arduino project, decoding I2C traffic between an Uno and a 0.96 inch OLED while simultaneously sampling the analog line driving a PWM LED. Doing both at once on a single device is something cheaper units simply cannot do.

Logic 2 is a major upgrade over the older Logic 1.x software. The interface is modern, the protocol search is fast, and exporting annotated captures for documentation is straightforward. If you work on embedded projects professionally, the workflow alone justifies the investment.

Mixed Signal Capability

Most budget analyzers are digital-only. The Logic 8 adds 10 MS/s analog capture on the same eight channels. For Arduino projects that mix digital buses with analog sensors or PWM signals, this is a genuine advantage: one probe does the work of a logic analyzer and a small oscilloscope.

During testing we captured an I2C handshake and the analog ripple on a motor driver input simultaneously. Identifying that the analog noise was coupling into the digital line took seconds instead of hours.

Software Ecosystem and Documentation

Saleae’s documentation is the best in this category. The Logic 2 manual covers setup, protocol analyzer setup, and automation scripting in clear English. Community resources on forums and Reddit reinforce this.

The analyzer uses host computer memory for sample storage rather than on-board RAM. That means capture depth scales with your laptop, but very long streaming captures can tax older machines.

Who Should Buy the Logic 8

If you earn money from embedded development, teach Arduino workshops, or simply want the best experience available, the Logic 8 is hard to beat. Hobbyists on tight budgets will get more value from the InnoMaker LA1010 or one of the 24MHz units below.

The price is the obvious drawback. At the premium end, the Logic 8 is a serious investment. But reviewers on embedded forums consistently report it as the unit that finally made protocol debugging feel effortless.

3. KeeYees 24MHz Logic Analyzer – Best Value Bundle for Arduino Hobbyists

The KeeYees 24MHz logic analyzer is our pick for hobbyists who want everything in one box. The unit itself is a familiar 24MHz 8-channel design, but KeeYees bundles 12 colorful test hook clips in six colors, so you can actually connect to a target board the day it arrives.

We have all bought budget analyzers only to discover we have no probes. Solving that problem upfront makes this bundle stand out.

The clips grip cleanly on 0.1 inch header pins, SMD test points, and dupont housings. Having six colors means you can match SDA, SCL, MOSI, MISO, SCK, and CS visually without staring at tiny labels.

Software Compatibility

This unit works with both Sigrok PulseView and Saleae Logic software. We tested it on PulseView, which is free and supports more than 200 protocol decoders. Setup was a matter of installing the sigrok driver and selecting the fx2lafw firmware.

Saleae Logic also recognized the device once we pointed it at the right driver. Having both options means you can use whichever software your tutorials reference.

What 24MHz Actually Means

24MHz is plenty for the most common Arduino protocols. I2C at 100kHz, 400kHz, and even 1MHz, SPI at up to about 8MHz, and UART at standard baud rates decode without issue. The Nyquist limit means the analyzer can accurately represent signals up to around 12MHz.

If you are debugging standard sensor and display projects, you will never hit the ceiling. If you need to analyze faster buses like high-speed SPI flash, a 100MHz unit is the safer choice.

Tangle-Free Cable and Daily Use

The included cable uses a flat, tangle-resistant jacket. It sounds like a small detail until you have spent ten minutes untangling a thin round cable at 1am. The connector is USB-A on the computer side, which works with every laptop we tested.

For under fifteen dollars with probes included, this is the bundle we hand to friends who ask which logic analyzer to buy first. It is a meaningful step up from a software-only approach and a perfect pairing with any of the kits in our Arduino starter kit guide.

4. HiLetgo 24MHz USB Logic Analyzer – Affordable Entry Point for Beginners

The HiLetgo 24MHz USB logic analyzer is the analyzer that introduced a lot of us to protocol decoding. It is one of the most-reviewed budget units on the market, and our testing confirmed why: it does the basics well and does not get in the way.

The compact gray enclosure feels lighter than the KeeYees and Comidox units, but in daily bench use that becomes an advantage. It tucks into a small parts bin between sessions.

The EMI ferrite ring on the USB cable is a thoughtful touch. In our bench tests near a switching power supply, the HiLetgo showed noticeably cleaner captures than identical clones without the ferrite. For digital work near motors or relays, this detail matters.

Sigrok Setup for First-Time Users

If this is your first logic analyzer, plan to spend about fifteen minutes setting up Sigrok PulseView. Install Zadig, replace the driver with libusb-win32’s, then launch the software, hit “connect,” and you are capturing.

Once set up, the workflow is identical to more expensive analyzers. Add the I2C protocol decoder, assign SDA and SCL channels, and the analyzer shows you exactly what your Arduino is sending.

Voltage Range and 3.3V Safety

The HiLetgo accepts inputs from -0.5V to 5.25V with a logic threshold around 1.5V. That makes it safe for both 5V Arduino boards and 3.3V boards like the Due, ESP32, and Raspberry Pi Pico.

Many beginners burn out cheaper clones by feeding 5V into a 3.3V-only input. The HiLetgo’s wide input range gives you a margin of error during those early projects.

Limitations to Know About

There is no on-board capture buffer, so the unit streams samples to your computer. On older laptops this means dropped captures. We tested on a five-year-old machine and saw glitches under heavy load.

No probes are included. Budget another few dollars for a set of dupont or test hooks. Documentation is essentially nonexistent, so rely on the Sigrok wiki and YouTube tutorials. For absolute beginners who can follow a quick setup guide, this is a worthy starting point. If you want a complete kit with probes from the start, look at the KeeYees bundle above.

5. Comidox CP317 – Budget Logic Analyzer for Basic Arduino Work

The Comidox CP317 is the analyzer to choose when every dollar matters. It is one of the most affordable 8-channel USB logic analyzers available, and for typical hobbyist use it does exactly what it says on the box.

The included package ships the analyzer, a USB cable, and 10 Dupont lines. That is enough to start probing without buying extras, though we recommend upgrading to test hooks once you start working with smaller pins.

The CP317 identifies as a Saleae-compatible device and works with the same drivers. We had it running I2C and SPI captures within ten minutes of opening the box on both Windows and Linux.

Voltage Range and Threshold Behavior

The CP317 accepts 0V to 5.5V with a 1.5V logic threshold. In practice that means a signal below 1.5V reads as LOW and anything above reads as HIGH. This is well-suited to 5V Arduino boards and most 3.3V boards.

For 1.8V systems like some low-power sensors, the CP317 is not the right tool. The Saleae Logic 8 or the InnoMaker LA1010 are better choices for those voltages.

When 24MHz Is Enough

At 24MHz maximum sampling, the CP317 captures signals up to roughly 12MHz accurately. Standard Arduino protocols fall well within that range: I2C at 100kHz, 400kHz, and even 1MHz, SPI up to several MHz, and UART at all standard baud rates.

If you stick to common sensors, displays, and communication modules, you will not run into the sampling ceiling. For fast SPI flash, high-resolution displays, or non-standard protocols, step up to a 100MHz unit.

Software Setup Tips

The CP317 works with both Saleae Logic and Sigrok PulseView. PulseView is free and a natural starting point. Install the sigrok-fx2lafw firmware and use Zadig on Windows to assign the libusb driver.

The unit lacks advanced triggering features like complex pattern match or sequencer triggers. For simple edge and on-bus-trigger conditions it performs well, but if you need to trigger on multi-step protocol patterns, the InnoMaker LA1010 or Saleae Logic 8 are better fits. For the price, this is still an outstanding entry point.

6. LONELY BINARY Logic Analyzer Kit – Best for Breadboard Prototyping

The LONELY BINARY logic analyzer kit is built for makers who prototype on breadboards every day. Instead of fighting with loose wires, you plug the included breadboard adapter directly into your circuit and you are probing.

The kit arrives with the analyzer base module, a logic level breadboard adapter, a logic level expansion board, USB-A and Type-C cables, 10 test clips, 5 alligator clips, and a storage container. It is the most complete accessory package on this list.

The breadboard adapter has 2.54mm pins that seat firmly in standard breadboards. We tested it next to an Arduino Nano on a solderless breadboard and the connection was rock solid, no jumper wires needed.

Dual USB Connectivity

Including both USB-A and Type-C cables means you can plug this analyzer into older laptops and modern ultrabooks that have dropped USB-A. Most other kits on this list ship with a single USB-A cable.

For makers using newer MacBooks or USB-C only laptops, that detail saves an immediate adapter purchase.

Logic Level Expansion Board

The expansion board provides clearly labeled input pads for each of the 8 channels. Combined with the alligator clips, you can clip onto module pins without soldering.

During testing we hooked the expansion board to a 3.3V sensor breakout and a 5V Arduino at the same time, switching between them without rewiring.

Storage and Warranty

The included plastic storage container keeps all the small accessories together. Anyone who has lost a test clip down the back of a workbench knows how valuable this is.

The 1-year warranty provides peace of mind, and LONELY BINARY customer service has a solid reputation among hobbyists on Reddit and Arduino forums.

The lower 4.2 rating reflects some users reporting compatibility quirks with specific Sigrok builds, so plan to spend a few minutes on driver setup. For makers who breadboard daily and want a tidy kit, this is the most thoughtfully packaged option on our list.

How to Choose the Right Logic Analyzer for Your Arduino Project

Picking among the best logic analyzers for Arduino work comes down to four decisions: sample rate, channel count, voltage range, and the software you want to use. Below is the framework our team uses when recommending units to readers and workshop students.

Sample Rate: 24MHz vs 100MHz and Beyond

Sample rate determines the highest signal frequency you can capture accurately. The Nyquist theorem says you need at least twice the bandwidth of the signal you want to see, but in practice four to ten times oversampling produces clean traces.

For standard Arduino protocols, 24MHz covers almost everything. I2C runs at 100kHz, 400kHz, or 1MHz. SPI typically tops out at a few MHz. UART at 115200 baud has edge frequencies well under 1MHz. A 24MHz unit captures these without issue.

If you plan to work with high-speed SPI flash chips, fast displays, or non-standard protocols, jump to 100MHz. Both the InnoMaker LA1010 and the Saleae Logic 8 deliver that headroom. Forum users on Reddit and the EEVblog forums consistently report 100MHz as the safe choice for future-proofing.

Channel Count: 8 vs 16 and When It Matters

Eight channels cover most Arduino projects. You can capture I2C with two channels, SPI with four, and UART with one, leaving channels for ground and trigger.

Sixteen channels matter when you have multiple buses running at once, an 8-bit parallel display, or many GPIO events to correlate. The InnoMaker LA1010 is the only 16-channel unit on our list and the right pick if your projects fall into those categories.

Voltage Tolerance and 3.3V Safety

Arduino Uno and Mega run at 5V logic. Arduino Due, ESP32, Raspberry Pi Pico, and many sensors run at 3.3V. Mixing them up can damage a 3.3V input.

Most modern analyzers accept the full 0V to 5.25V range and handle both safely. For 1.8V systems, you will need a unit that supports lower thresholds, such as the Saleae Logic 8. For a broader overview of measurement tools, our analysis of body fat analyzers shows how voltage and safety decisions matter across instruments.

Software: Sigrok PulseView vs Saleae Logic vs KingstVIS

Sigrok PulseView is free and supports more than 200 protocol decoders. It runs on Windows, macOS, and Linux. The downside is a steeper initial setup, especially on Windows where driver installation with Zadig is required.

Saleae Logic is polished and beginner-friendly. The free version supports a handful of protocols, and the paid version unlocks the full library. Saleae Logic 2 is a major upgrade with a modern interface.

KingstVIS ships with the InnoMaker LA1010 and works well for that hardware. It supports 30+ protocols and includes features like HDMI output.

For hobbyists on a budget, Sigrok PulseView is the obvious choice. For professionals, Saleae Logic 2 is worth the subscription.

DIY Alternative: Can You Use an Arduino as a Logic Analyzer?

Yes, you can turn an Arduino Uno into a basic 6-channel logic analyzer using the SUMP protocol and client software. The open-source Sigrok project supports this approach.

Sample rate is limited to about 1MHz on an Uno, which is fine for I2C and slow UART but inadequate for SPI above 1MHz. We tried this on an Uno and got useful I2C captures, which is a great way to confirm you actually need a dedicated analyzer before buying one.

Frequently Asked Questions

Final Verdict: Our Top Logic Analyzer for Arduino in 2026

After weeks of bench testing, the InnoMaker LA1010 remains our top pick as the best logic analyzer for Arduino projects. The 100MHz sample rate, 16 inputs, and clean English-language software cover everything from beginner I2C sensors to professional multi-bus projects. It is the rare unit that fits both hobbyist and professional workflows.

If you are on a tight budget, the KeeYees 24MHz kit with included probes is the smartest starting point. If you want the trusted premium experience and mixed signal capture, the Saleae Logic 8 is the gold standard. For breadboard prototyping daily, the LONELY BINARY kit is the most thoughtfully designed package. If you are curious about audio and creative electronics tools, our Solid State Logic Connex review explores a different corner of the electronics world.

Whichever unit you choose, a logic analyzer transforms Arduino debugging from guesswork into a clear picture of what your code is actually doing on the bus. Pick the one that matches your projects and start capturing today.
